ISB H 2XX series adapter sleeves for bearings with tapered bore: combined with a locknut and lock washer, they make mounting and dismounting easier. Sizes from H 204.
FAG NU 22XX series cylindrical roller bearings, type NU (Item No. NU2218-E-XL-TVP2), Schaeffler group: a single row of rollers with cage, heavy radial loads, high rigidity and solid rings. Sizes can be selected among the variants.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

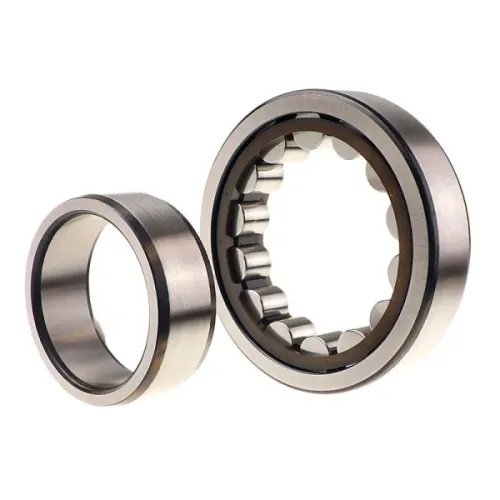

FAG NU 22XX Series Cylindrical Roller Bearings - Item No. NU2218-E-XL-TVP2
The FAG (Schaeffler) NU 22XX series brings together type NU radial bearings with a single row of cylindrical rollers, with solid rings and rollers spaced by the cage. Thanks to the cage, rotation speeds can be higher than in full-complement roller versions. The inner ring without flanges lets the rollers run along the raceway: length is compensated within the bearing, which does not transmit axial forces and acts as a floating support. For the same size, cylindrical roller bearings have higher basic load ratings than ball bearings, so they are chosen where radial loads are heavy. Reference item of the range: NU2218-E-XL-TVP2.
Technical Specifications
- Construction: Single row of cylindrical rollers with cage, solid rings
- Type: NU, series NU 22XX
- Function: floating bearing, compensates for length
- Rings: outer with two flanges, inner plain
- Mounting: Separable rings, interference fit
- Cage: polyamide with glass fibre (TVP2), among the versions
- Item No.: NU2218-E-XL-TVP2
- Brand: FAG (Schaeffler)
Applications and Uses
- Machine tools and drive spindles
- Machines for processing metals and plastics
- Pumps, fans and compressors
More details
- Brand
- FAG
- Code
- CUINU2204
- EAN13
- 4012801179416
- Manufacturer code
- NU2204-E-XL-TVP2
