LINER FOR WIRE TORCH MT5 TMA20 WIRE 0,6-0,9 BLUE

Code: SD012015TMA EAN: 8028485015304
€6.90
VAT excluded: €5.66
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

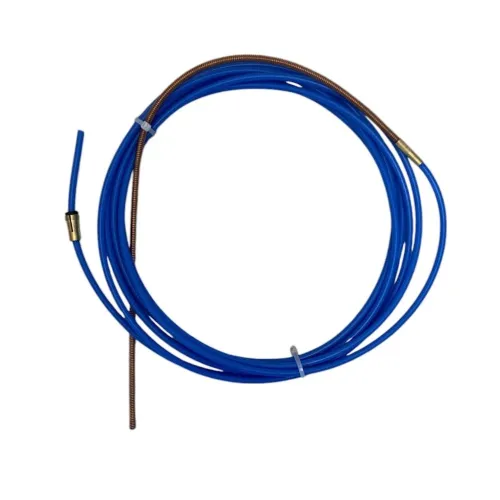

Blue Wire Liner 5 m Wire 0.6-0.9 mm Trafimet - Item No. GM0502


Trafimet GM0502 steel wire liner with blue coating, 5 m long, for wires from 0.6 to 0.9 mm. The spiral has an inside diameter of 1.4 mm and an outside diameter of 4.6 mm and runs inside the torch cable, guiding the wire from the wire feeder to the tip. The manufacturer lists it for the 5 m Ergoplus 15 torches, in the standard, 15R Flex and 15R swivel versions, and for the Extremig 15. It must be replaced when the wire begins to feed in jerks or jams, a sign that the liner is dirty or worn; the head spare part, MS0007, is available separately. The blue colour identifies the size for thin wires.

Technical Specifications

  • Type: Coated steel wire liner
  • Colour: Blue
  • Length: 5 m
  • Wire: from 0.6 to 0.9 mm
  • Inside diameter: 1.4 mm
  • Outside diameter: 4.6 mm
  • Compatible torches: Ergoplus 15 (5 m), Extremig 15
  • Item No.: GM0502
  • Brand: TRAFIMET

Applications and Uses

  • Maintenance of 5 m Ergoplus 15 torches
  • Thin wires from 0.6 to 0.9 mm
  • Restoring wire feeding

More details

Brand
SACIT
Code
SD012015TMA
EAN13
8028485015304
Manufacturer code
GM0502
