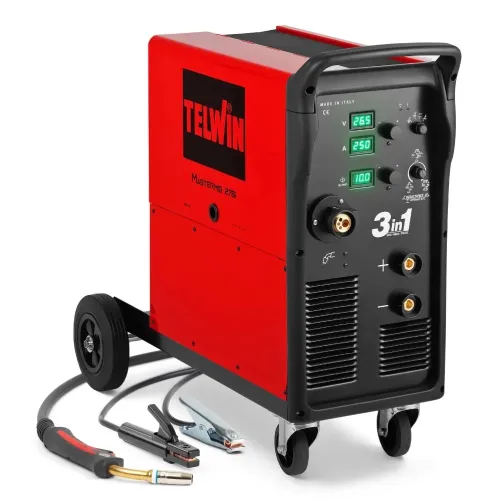

TELWIN MASTERMIG 275i WIRE WELDER 400 V

Code: SD816218 EAN: 8056590379844
€1,830.00
VAT excluded: €1,500.00
In stock 1 piece in stock Ships in 24/48 hours

Description

Multiprocess Inverter Welder Telwin Mastermig 275i 400 V with Accessories - Item No. 816218


Telwin Mastermig 275i multiprocess inverter welder, code 816218, for MIG-MAG wire welding and brazing, electrode welding and Lift-start TIG. In electrode mode arc force and hot start are synergic, meaning they adjust to the electrode, and there is anti-stick. The dedicated tunnel ventilation protects the electronics from dirt and dust. Three-phase 400 V supply with 10 A fuse, current from 20 to 250 A, 250 A at 30 per cent and 140 A at 100 per cent according to EN 60974-1. Built-in 2+2 roller feed, steel wires from 0.6 to 1.2 mm. IP22, class F, 43 kg. Supplied with a 3 m MT25 torch, electrode holder and earth clamp with cables.

Technical Specifications

  • Type: Multiprocess inverter welder
  • Processes: MIG-MAG, brazing, MMA, Lift TIG
  • Supply: 400 V three-phase, 10 A fuse
  • Current: 20 to 250 A
  • Duty cycle: 250 A at 30, 140 A at 100 per cent (EN 60974-1)
  • Wires: Steel 0.6-1.2, stainless steel 0.8-1, aluminium 0.8-1 mm
  • Protection: IP22, class F
  • Weight: 43 kg
  • Supplied with: MT25 torch 3 m, electrode holder and earth clamp with cables
  • Item No.: 816218
  • Brand: TELWIN

Applications and Uses

  • Fabrication and workshops with a three-phase supply
  • Dusty environments thanks to the tunnel ventilation
  • Multiprocess work

More details

Brand
TELWIN
Code
SD816218
EAN13
8056590379844
Manufacturer code
816218

Attachments

Recommended accessories and spare parts

CONTACT TIP 0,8 011504

€0.49
AVAILABLE
Availability: 17 In stock

Contact tip 0.8 mm (code 011504) for MIG/MAG torches, a consumable that guides the 0.8 mm diameter welding wire inside the torch, ensuring smooth, jam-free feeding of the wire.

NOZZLE-HOLDER SPRING FOR TORCH TMA15

€1.10
AVAILABLE
Availability: 4 In stock

Trafimet EA0303 nozzle retaining spring for Plus 14-15 and Ergoplus 15 MIG torches: it holds the gas nozzle on the torch body and allows it to be pressed on. Pack of 10 pieces.

CONTACT TIP 0,8 CEA M8X34

€1.30
AVAILABLE
Availability: 4 In stock

Contact tip 0.8 mm CEA M8×34 for MIG/MAG torches, a spare part that allows smooth passage of the welding wire through the torch, ensuring precise feeding and reducing jams and friction.

ALUMINIUM WIRE ON SPOOL MM.0,8 kg 0,5

€26.60
AVAILABLE
Availability: 3 In stock

Wire aluminium Ø 0.8 mm – 0.45 kg Telwin, spool for MIG/MAG welding with Argon shielding gas, ideal for work on aluminium with excellent wire feed and clean, regular beads.

ALUMINIUM WIRE ON SPOOL MM1 KG 0,5

€27.00
AVAILABLE
Availability: 3 In stock

Aluminium Wire Spool 1.0 mm 0.45 kg Telwin – aluminium wire Ø 1.0 mm on a spool of approx. 0.45 kg, consumable for MIG/MAG welding with Argon gas, ideal for work on aluminium and light alloys.

TELWIN AUTO-DARKENING WELDING MASK 804233

€37.00
AVAILABLE
Availability: 3 In stock

Telwin Tribe 804233 LCD liquid crystal auto-darkening mask for MMA / MIG‑MAG / TIG welding, with a filter that darkens automatically when the arc is struck and returns to clear when it stops, removing the need to lift and lower the mask during work.
