TELLURE ROTA NYLON WHEEL WITHOUT BRACKET — 6 SIZES, FROM D.80 TO D.200MM

Code: RUKN100 EAN: 8007554051559
€3.30
VAT excluded: €2.70
Size : D. 100
In stock 9 pieces in stock Ships in 24/48 hours

Description

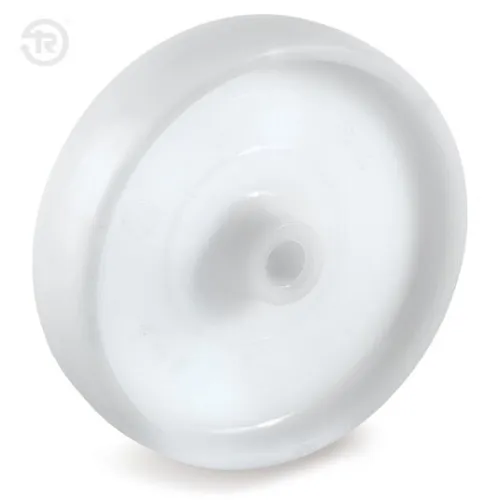

Nylon Wheel Tellure Rota Series 68 without Bracket - Item No. 681111


Tellure Rota series 68 monolithic wheels, in 70 Shore D polyamide 6, with the hub on a bush, rollers or shielded balls. Wheel only, without bracket, in diameters from 80 to 200 mm. In the 80x30 mm size with 12 mm bore the load capacity is 180 daN at 4 km/h. The diameter is chosen from the variants. They are suitable for mainly static use and medium loads, on smooth floors only, even in environments with aggressive chemical agents; the manufacturer does not recommend them with strong organic acids and concentrated mineral acids. The range follows ISO 22880 and UNI EN 12529 and is declared compliant with RoHS and REACH.

Technical Specifications

  • Type: Wheel without bracket
  • Covering: Monolithic polyamide 6, 70 Shore D
  • Core: Monolithic
  • Diameters: from 80 to 200 mm
  • Example 80x30: bore 12 mm, 180 daN at 4 km/h
  • Operating temperature: from -30 to +80 °C
  • Item No.: 681111
  • Brand: TELLURE ROTA

Applications and Uses

  • Static use
  • Non-aggressive chemical agents
  • Mobile scaffolds with suitable brackets

More details

Brand
TELLURE ROTA
Code
RUKN100
EAN13
8007554048276
Manufacturer code
681112
