COMPLETE TORCH ERGOPLUS 25, M5, EURO, SP-BLU

Code: SD01200CTMA EAN: 8028485057403
€125.60
VAT excluded: €102.95
In stock 1 piece in stock Ships in 24/48 hours

Description

Trafimet Ergoplus 25 MIG Torch 5 m Central Connector - Item No. MA4202-050

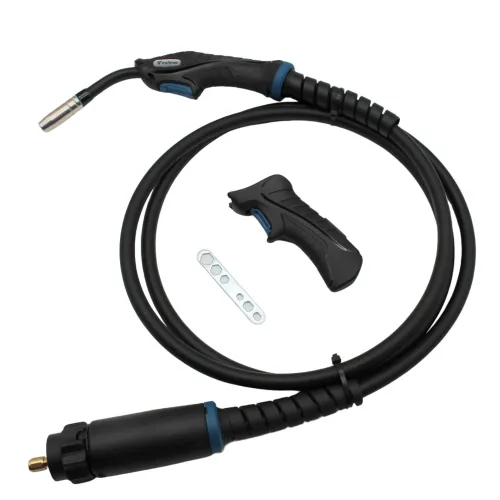

Complete Trafimet Ergoplus 25 torch for MIG/MAG welding, with a 5 m cable for working away from the welder, European central connector and air cooling, to EN 60974-7. At 60 per cent duty cycle it carries 230 A with CO2 and 220 A with mixed gas, with wires from 0.8 to 1.2 mm; the cable has a cross-section of 25 mm². It is fitted as standard with a 15 mm nozzle, a 1.0 mm M6 tip, an M6 diffuser and a liner for wires from 1.0 to 1.2 mm. Handle with removable pistol grip, sealed IP67 button and spring swivel. Weight 0.9 kg. The Ergoplus 25 consumables, M6 tips and 15 mm nozzles, are also available separately.

Technical Specifications

  • Type: Air-cooled MIG/MAG torch
  • Length: 5 m
  • Connector: European central
  • Rating: 230 A CO2, 220 A mixed gas at 60 per cent
  • Wire: from 0.8 to 1.2 mm
  • Cable: 25 mm²
  • Standard: EN 60974-7
  • Weight: 0.9 kg
  • Item No.: MA4202-050
  • Brand: TRAFIMET

Applications and Uses

  • MIG/MAG welders with European central connector
  • Metalwork on large workpieces
  • Replacement for the original torch

More details

Brand
SACIT
Code
SD01200CTMA
EAN13
8028485057403
Manufacturer code
MA4202-050

Recommended accessories and spare parts

NOZZLE HOLE Ø15mm PLUS 25

€3.20
AVAILABLE
Availability: 39 In stock

Trafimet MC0023 gas nozzle for Ergoplus 25 MIG torches, 15 mm bore and 57 mm length: it is the standard nozzle of the Ergoplus 25 and directs the gas onto the weld pool. Pack of 10 pieces.

MICRO SWITCH FOR TIG TORCH BX 0024

€6.80
AVAILABLE
Availability: 5 In stock

Trafimet BX0024 extended button, spare part for Ergoplus and Mega MIG torches of the previous codes: it replaces the torch control button. Pack of 5 pieces.

COMPLETE TORCH ERGOPLUS 15, M3

€77.30
Last one left!
Availability: 1 In stock

Trafimet Ergoplus 15 3 m MIG torch with European central connector, air-cooled: 180 A with CO2 and 150 A with 60 per cent mixed gas, wire from 0.6 to 1.0 mm, 16 mm² cable, EN 60974-7.

TORCH BODY ERGOPLUS 500, COOLED

€88.40
AVAILABLE
Availability: 3 In stock

Torch body ErgoPlus 500 air-cooled, a sturdy spare part for high-performance MIG/MAG systems, designed for continuous applications on medium-to-large material thicknesses.
