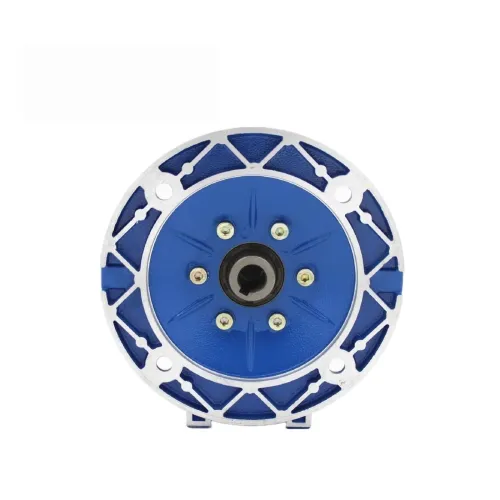

MOTOR FLANGE FOR U75 GEARBOX PAM80 B5

Code: MEU75PAM80B5
€32.60
VAT excluded: €26.72
In stock 2 pieces in stock Ships in 24/48 hours

Description

Motor Flange for STM U 75 Gearbox PAM 80 B5 - Item No. 2450012141


STM motor flange for the U 75 worm gearbox, in the PAM 80 configuration with B5 fitting. It is the part that connects the motor to the gearbox: for this size the STM catalogue gives, with the IEC 80 motor, the combination of 19 mm motor shaft and 200 mm flange (B5). The standard configuration of the connection flange has four holes at 45 degrees to the axes. Item No. 2450012141.

Technical Specifications

  • Type: Motor flange
  • Gearbox: STM U series, size 75
  • Motor interface: PAM 80
  • Fixing form: B5
  • Catalogue motor shaft: 19 mm
  • Catalogue motor flange: 200 mm
  • Item No.: 2450012141
  • Brand: STM

Applications and Uses

  • Fitting an IEC 80 motor to the STM U 75 gearbox
  • Replacement of a damaged or out-of-tolerance flange
  • Spare parts for maintenance of worm gearmotors

More details

Brand
STM
Code
MEU75PAM80B5
Manufacturer code
2450012141
