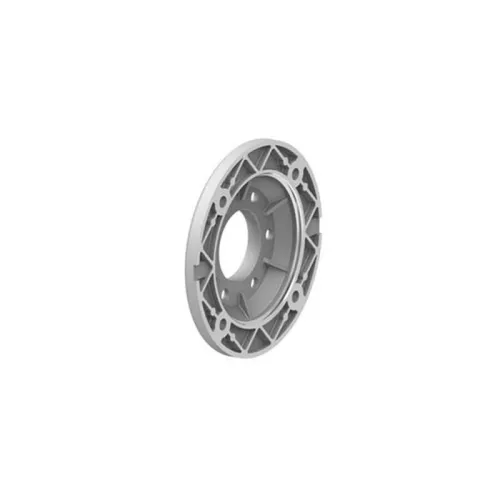

MOTOR FLANGE FOR U75 GEARBOX PAM80 B14

Code: MEU75PAM80B14
€31.90
VAT excluded: €26.15
In stock 1 piece in stock Ships in 24/48 hours

Description

Motor Flange for STM U 75 Gearbox PAM 80 B14 - Item No. 2450010691


Motor connection flange for the STM U 75 gearbox, PAM 80 version with B14 fixing. It is used to couple an IEC 80 motor (19 mm shaft, 120 mm flange according to the STM catalogue) to the gearbox, and is available as a spare part with code 2450010691.

Technical Specifications

  • Item No.: 2450010691
  • For gearbox: STM U 75
  • IEC motor: 80, B14 form
  • Shaft / flange: 19 / 120 mm
  • Standard holes: four, at 45 degrees to the axes
  • Brand: STM

Applications and Uses

  • Replacement of a PAM 80 motor connection
  • Maintenance of conveyors and drives with an STM gearbox
  • Spare parts stock for the U series

More details

Brand
STM
Code
MEU75PAM80B14
Manufacturer code
2450010691

Recommended accessories and spare parts

STM U 75 GEARBOX FOR MOTOR, BORE 28

€254.90
AVAILABLE
Availability: 3 In stock

STM U 75 square worm gearbox for motor, 28 mm output bore, item no. 2180234791. Cubic body with universal mounting; reduction ratio selectable among the variants.

SHORT OUTPUT FLANGE FOR U75 GEARBOX

€17.30
Last one left!
Availability: 1 In stock

STM spare part item no. 1010050901: output flange in the short version for the U 75 worm gearbox, for flange mounting as an alternative to the universal feet.

SINGLE OUTPUT SHAFT FOR U 75 GEARBOX mm.28

€28.00
Only 2 left!
Availability: 2 In stock

Single slow shaft Ø 28 mm for STM U 75 gearbox, item no. 2421210011. Supplied as a kit with UNI 6604-69 keys, washers and screws; fits the gearbox with a standard hollow shaft.

LONG OUTPUT FLANGE FOR U75 GEARBOX

€29.80
AVAILABLE
Availability: 3 In stock

STM spare part item no. 1010050891: output flange in the long version for the U 75 worm gearbox, for flange mounting as an alternative to the universal feet.
