STM motor flange for U 75 gearbox, PAM 100 B5 configuration, item no. 2450014301. It matches the IEC 100 motor to the gearbox: catalogue motor shaft 28 mm and flange 250 mm.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

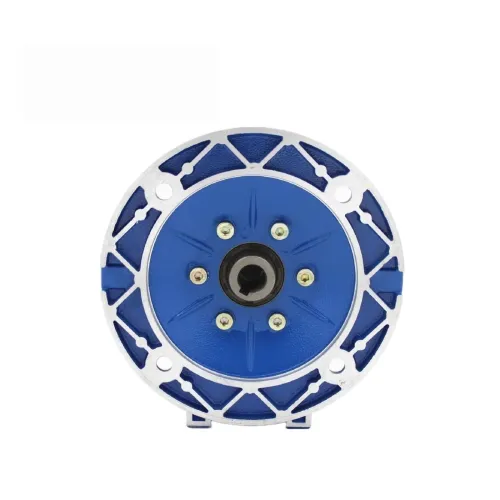

Motor Flange for STM U 75 Gearbox PAM 100 B5 - Item No. 2450014301
Size 75, PAM 100, B5 form: these are the three data that identify this motor flange for STM U series gearboxes. The manufacturer's catalogue associates the IEC 100 motor with a 28 mm shaft and a 250 mm flange. In the standard version the four fixing holes are arranged at 45 degrees to the axes. Item No. 2450014301.
Technical Specifications
- Type: Motor flange
- Gearbox: STM U series, size 75
- Motor interface: PAM 100
- Fixing form: B5
- Catalogue motor shaft: 28 mm
- Catalogue motor flange: 250 mm
- Item No.: 2450014301
- Brand: STM
Applications and Uses
- Gearbox-motor coupling in B5 form
- Repair work on material handling plants
- Completing a U 75 gearbox to be matched with a motor
More details
- Brand
- STM
- Code
- MEU75PAM100B5
- Manufacturer code
- 2450014301
Recommended accessories and spare parts
STM spare part item no. 1010050901: output flange in the short version for the U 75 worm gearbox, for flange mounting as an alternative to the universal feet.
Single slow shaft Ø 28 mm for STM U 75 gearbox, item no. 2421210011. Supplied as a kit with UNI 6604-69 keys, washers and screws; fits the gearbox with a standard hollow shaft.
STM spare part item no. 1010050891: output flange in the long version for the U 75 worm gearbox, for flange mounting as an alternative to the universal feet.
