STM spare part item no. 2450014021: motor connection flange for the U 75 worm gearbox, PAM 100 motor in B14 form, with 28 mm shaft and 160 mm flange in the catalogue.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

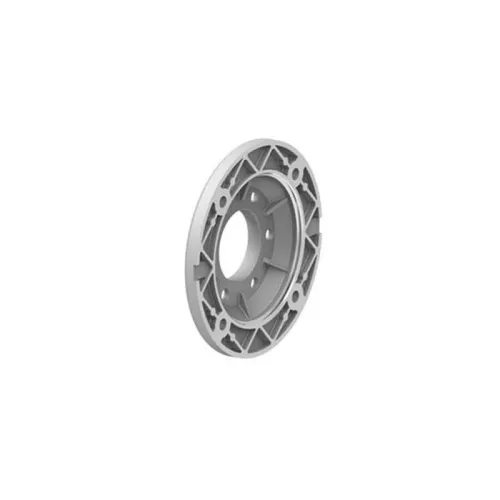

Motor Flange for STM U 75 Gearbox PAM 100 B14 - Item No. 2450014021
To mount an IEC 100 motor in B14 form on an STM U 75 gearbox you need this connection flange. In the catalogue the standard match gives a 28 mm motor shaft and a 160 mm flange. STM spare part, code 2450014021, referring to size 75 and the PAM 100 configuration.
Technical Specifications
- Item No.: 2450014021
- For gearbox: STM U 75
- IEC motor: 100, B14 form
- Shaft / flange: 28 / 160 mm
- Standard holes: four, at 45 degrees to the axes
- Brand: STM
Applications and Uses
- Restoring the motor connection after dismantling
- Changing the motor on a U series gearbox
- Spare parts stock for workshops and maintenance engineers
More details
- Brand
- STM
- Code
- MEU75PAM100B1
- Manufacturer code
- 2450014021
Recommended accessories and spare parts
STM spare part item no. 1010050901: output flange in the short version for the U 75 worm gearbox, for flange mounting as an alternative to the universal feet.
Single slow shaft Ø 28 mm for STM U 75 gearbox, item no. 2421210011. Supplied as a kit with UNI 6604-69 keys, washers and screws; fits the gearbox with a standard hollow shaft.
STM spare part item no. 1010050891: output flange in the long version for the U 75 worm gearbox, for flange mounting as an alternative to the universal feet.
