STM motor flange for U 110 gearbox, PAM 90 B5 configuration, item no. 2450010321. It matches the IEC 90 motor to the gearbox: catalogue motor shaft 24 mm and flange 200 mm.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

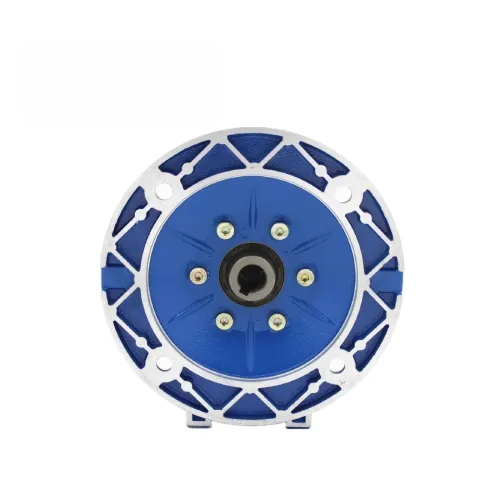

Motor Flange for STM U 110 Gearbox PAM 90 B5 - Item No. 2450010321
STM motor flange for the U 110 worm gearbox, in the PAM 90 configuration with B5 fitting. It is the part that connects the motor to the gearbox: for this size the STM catalogue gives, with the IEC 90 motor, the combination of 24 mm motor shaft and 200 mm flange (B5). The standard configuration of the connection flange has four holes at 45 degrees to the axes. Item No. 2450010321.
Technical Specifications
- Type: Motor flange
- Gearbox: STM U series, size 110
- Motor interface: PAM 90
- Fixing form: B5
- Catalogue motor shaft: 24 mm
- Catalogue motor flange: 200 mm
- Item No.: 2450010321
- Brand: STM
Applications and Uses
- Fitting an IEC 90 motor to the STM U 110 gearbox
- Replacement of a damaged or out-of-tolerance flange
- Spare parts for maintenance of worm gearmotors
More details
- Brand
- STM
- Code
- MEU110PAM90B5
- Manufacturer code
- 2450010321
Recommended accessories and spare parts
Double-ended slow shaft Ø 42 mm for STM U 110 gearbox, item no. 24220140011. Supplied as a kit with UNI 6604-69 keys, washers, screws and Seeger rings; fits the gearbox with a standard hollow shaft.
STM accessory item no. 2081010091 for the U 110 worm gearbox: a torque arm for fixing with a tie rod the gearbox mounted on the shaft, standard hollow output 42 mm.
STM spare part item no. 2422010011: 42 mm single-ended slow shaft for the U 110 gearbox. Mounting kit complete with keys, washers and screws, for a hollow shaft of standard diameter.
