TELWIN TECNICA 190 TIG DC-LIFT VRD INVERTER WELDER

Code: SD852045 EAN: 8004897886787
€399.00
VAT excluded: €327.05
In stock 2 pieces in stock Ships in 24/48 hours

Description

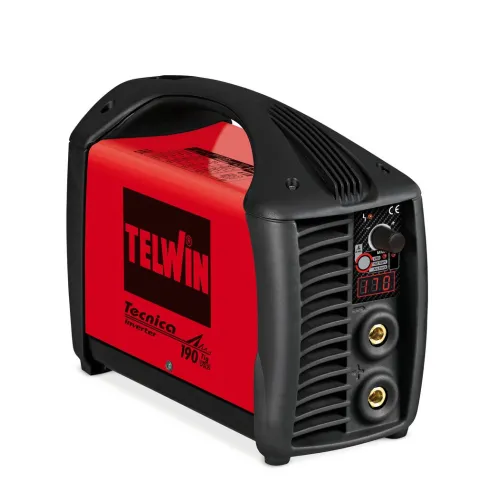

DC Lift TIG and MMA Inverter Welder Telwin Tecnica 190 VRD with Accessories - Item No. 852045


Telwin Tecnica 190 TIG DC-Lift VRD inverter welder, code 852045, made up of the 816019 machine and the 801096 electrode welding kit. It welds DC TIG with Lift start on steel, stainless steel, titanium, copper, nickel and alloys, and with rutile, basic, stainless steel and cast iron electrodes from 1.6 to 4 mm. Current from 10 to 170 A, 160 A at 20 per cent according to EN 60974-1 and 110 A at 60 per cent. Single-phase 230 V supply with 16 A fuse; it also works with a generator set of at least 6 kW. Arc force, hot start and a VRD device that reduces the no-load voltage to 14 V. IP23, class F, 6.3 kg. TIG torch optional.

Technical Specifications

  • Type: DC TIG and MMA inverter welder
  • TIG start: Lift
  • Supply: 230 V single-phase, 16 A fuse
  • Current: 10 to 170 A
  • Duty cycle: 160 A at 20, 110 A at 60 per cent (EN 60974-1)
  • Electrodes: 1.6 to 4 mm
  • Functions: Arc force, hot start, VRD
  • Protection: IP23, class F
  • Weight: 6.3 kg
  • Supplied with: MMA kit 801096
  • Item No.: 852045
  • Brand: TELWIN

Applications and Uses

  • TIG welding of steel, stainless steel and copper
  • Electrode welding in the workshop and on site
  • Maintenance and light fabrication

More details

Brand
TELWIN
Code
SD852045
EAN13
8004897886787
Manufacturer code
852045
