BRONZE PUMP WITH PULLEY

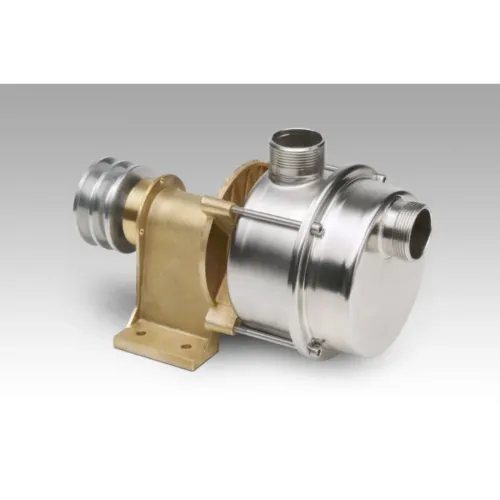

Self-Priming Bronze Pumps with Pulley - Tellarini

Self-priming side channel pumps in bronze (brass CB754S) with housing and pulley, Tellarini brand. The pulley version allows easy belt coupling to any electric or internal combustion engine already present on the system, offering maximum installation flexibility. The pumps are bi-directional (flow reversal) and are supplied complete with hose tail fittings.

Technical specifications

• Pump body: bronze (brass CB754S)
• Shaft: stainless steel
• Type: self-priming side channel with pulley housing
• Bi-directional: reversible flow
• Coupling: by belt to any engine
• Available diameters: D.25, D.30, D.40, D.50 mm
• Supplied with straight and curved hose tail fitting
• Brand: TELLARINI
• Available on request: manual by-pass for flow rate adjustment, special seals (Viton, ceramic/graphite, EPDM)

Applications and uses

• Agricultural systems with internal combustion engine (tractor, engine-driven pump)
• Marine use: coupling to the on-board engine
• Industrial systems with engine already present
• Transfer of diesel, water, oil, wine and food liquids
• Fungicide treatments
• Any application where an engine with pulley is already available
