Description

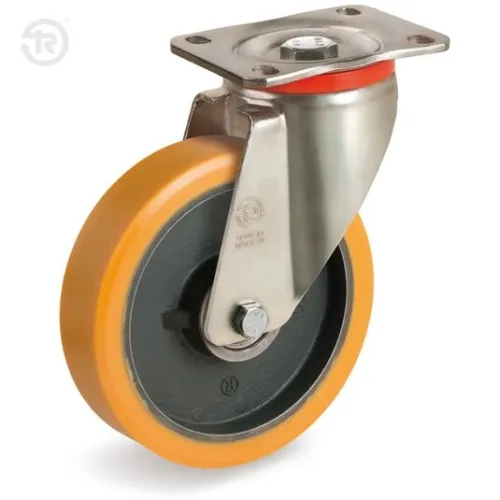

Polyurethane Wheel Tellure Rota Series 64 D.125 with Swivel Heavy-Duty Bracket - Item No. 645863
Tellure Rota series 64 wheels, with 92 Shore A TR polyurethane covering on a mechanical cast iron core and hub with a re-machinable through hole or with shielded balls. Version in the 125x50 mm diameter with swivel heavy-duty bracket: 140x110 mm plate with 11 mm holes, height of 170 mm, yellow zinc plating and class 8.8 steel screw pin. The load capacity is 550 daN at 4 km/h and 440 daN at 6 km/h. They cover diameters from 80 to 400 mm for loads from light to very high; with suitable brackets the manufacturer indicates use at up to 16 km/h.
Technical Specifications
- Type: Wheel with swivel heavy-duty bracket
- Covering: TR polyurethane 92 Shore A
- Core: Mechanical cast iron
- Diameter: 125 x 50 mm
- Bracket: Heavy-duty, 140x110 mm plate
- Operating temperature: from -20 to +80 °C
- Item No.: 645863
- Brand: TELLURE ROTA
Applications and Uses
- Trolleys for high loads
- Industrial handling
- Machines and workshop equipment
More details
- Brand
- TELLURE ROTA
- Code
- RU645863
- EAN13
- 8007554051436
- Manufacturer code
- 645863
