Description

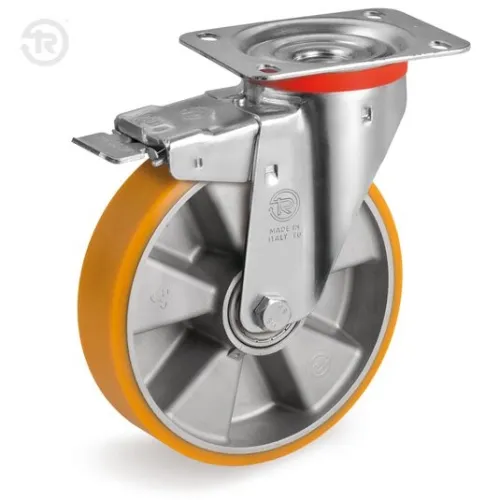

Polyurethane Wheel with Aluminium Core Tellure Rota Series 65 AL with Swivel Bracket and Brake - Item No. 656506
Tellure Rota series 65 AL wheel: 92 Shore A TR polyurethane on a die-cast aluminium core, with shielded ball bearings fitted by interference. Version with swivel bracket and brake to lock the wheel when the trolley is stationary, of the light NL type with a maximum bracket load capacity of 300 daN. The diameters range from 80 to 200 mm. The diameter is chosen from the variants. Suitable for medium and high loads and for mechanical handling up to 6 km/h, in industrial environments, even with alcohols, glycols and hydrocarbons. The range follows ISO 22880 and UNI EN 12529 and is declared compliant with RoHS and REACH.
Technical Specifications
- Type: Wheel with swivel bracket and brake
- Covering: TR polyurethane 92 Shore A
- Core: Die-cast aluminium
- Diameters: from 80 to 200 mm
- Bracket: Swivel with brake, light NL type
- Operating temperature: from -20 to +80 °C
- Item No.: 656506
- Brand: TELLURE ROTA
Applications and Uses
- Industrial handling with medium to high loads
- Trolleys for workshops and warehouses
- Environments with alcohols, glycols and hydrocarbons
More details
- Brand
- TELLURE ROTA
- Code
- RU656501
- EAN13
- 8007554032770
- Manufacturer code
- 656501
