STAINLESS STEEL AISI 316 BSP MALE-FEMALE REDUCER — 7 SIZES

Code: RXRIDUZ112
€3.40
VAT excluded: €2.79
Size : 1"-1/2"
In stock 113 pieces in stock Ships in 24/48 hours

Description

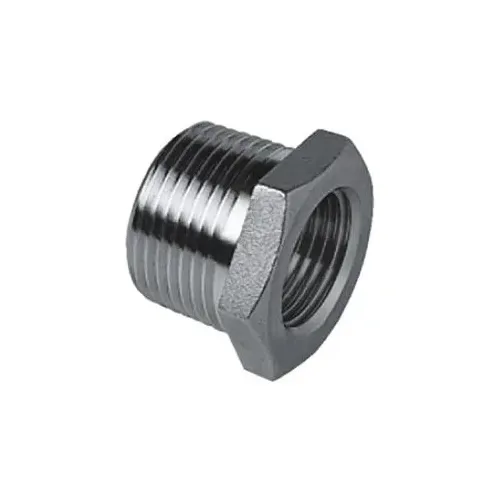

AISI 316 Stainless Steel Reducer Male-Female BSP - Item No. 1302503


Threaded fitting in AISI 316 (1.4401) stainless steel, sealing on the thread to UNI EN 10226-1 and supplied with an EN 10204 3.1 certificate. The male-female reducer connects two pipes of different diameters: the male side screws into the larger size and the female side receives the smaller one. Between -20 and +40 °C the maximum working pressure of the series is 20 bar, as stated by the manufacturer; the value falls as the temperature rises. The sizes available in the range go from 1/8 to 4 inches. Always check that capacity, pressure and size are suitable for the application in which the item will be fitted, and use the item as indicated by the manufacturer. GT Comis catalogue reference: item no. 834.

Technical Specifications

  • Type: Reducer M-F
  • Material: AISI 316 (1.4401) stainless steel
  • Thread: UNI EN 10226-1
  • Certificate: EN 10204 3.1
  • Maximum pressure: 20 bar between -20 and +40 °C
  • Item No.: 1302503
  • Brand: GT COMIS

Applications and Uses

  • Food industry
  • Fluid distribution
  • Systems exposed to corrosion

More details

Brand
GT COMIS
Code
RXRIDUZ112
Manufacturer code
1302513
