MUJELLI 1 HOSE FITTING CARTRIDGE OX 80900

Code: SFM80500 EAN: 8592346164543
€29.70
VAT excluded: €24.34
Size : OXYGEN
In stock 3 pieces in stock Ships in 24/48 hours

Description

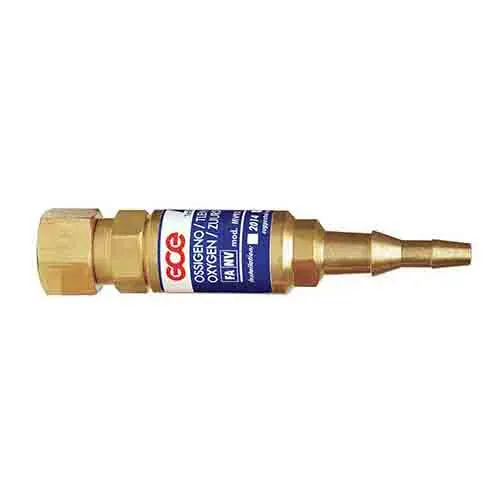

Torch Flashback Arrestor GCE SafeGuard 2 MV93-TF


GCE SafeGuard 2 MV93-TF safety valve, to be screwed onto the torch handle, mini 1/4 or Mujver 3/8, with the hose barb for the hose on the other side. It performs two functions: it stops flashback, which could travel back up the hose, and it prevents gas return, that is, the passage of one gas into the hose of the other. It is built to EN ISO 5175-1. Maximum flow 40 m³/h for oxygen and 10 m³/h for gas. The variants are the version for fuel gases, 80950, with left-hand thread, and the one for oxygen, 80900. The manufacturer specifies replacing it after 5 years at most from installation and checking it periodically.

Technical Specifications

  • Type: Flashback and gas return arrestor
  • Mounting: On the torch handle (hose-to-thread)
  • Standard: EN ISO 5175-1
  • Maximum flow: 40 m³/h oxygen, 10 m³/h gas
  • Versions: 80950 gas, 80900 oxygen, among the variants
  • Service life: Replace within 5 years
  • Brand: GCE MUJELLI

Applications and Uses

  • Safety of welding and cutting torches
  • Oxyacetylene and propane systems
  • Workshops and building sites

More details

Brand
MUJELLI
Code
SFM80500
EAN13
8592346188709
Manufacturer code
80900

Recommended accessories and spare parts

LENS FOR MASK, VARIOUS DIN AND SIZES

€3.39
COMING SOON
Availability: Out of stock

Sacit glass for welding mask in sizes 50x105, 75x98 and 90x110 mm and a version for liquid crystal masks, among the variants. Check the type and grade before ordering.

LENS FOR MASK, VARIOUS DIN AND SIZES

€1.99
AVAILABLE
Availability: 86 In stock

Sacit filter glasses for welding masks to EN 169, 3 mm thick: green DIN 9, 10 or 11 and mirrored, in sizes 50x105, 75x98 and 90x110 mm. Grade and size among the variants.
