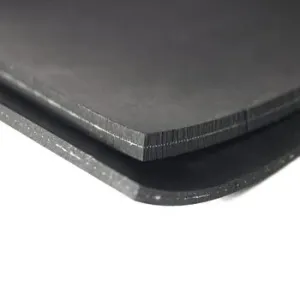

FABRIC-REINFORCED SBR RUBBER SHEET THICKNESS 2MM-10MM

Code: LGTEXILTEN10
€2.50
VAT excluded: €2.05
Size : MM. 10 2 SECTIONS
Dimensions
cm
cm
In stock 116 pieces in stock Ships in 24/48 hours

Description

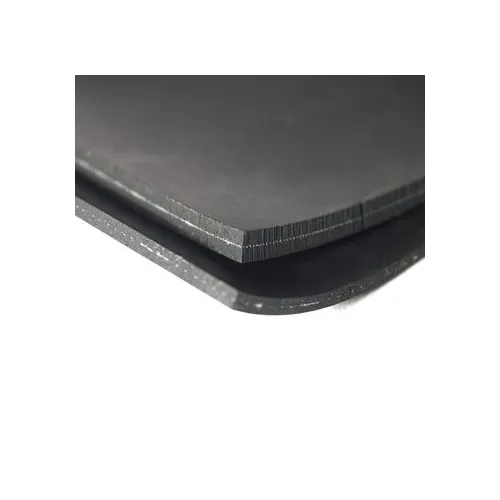

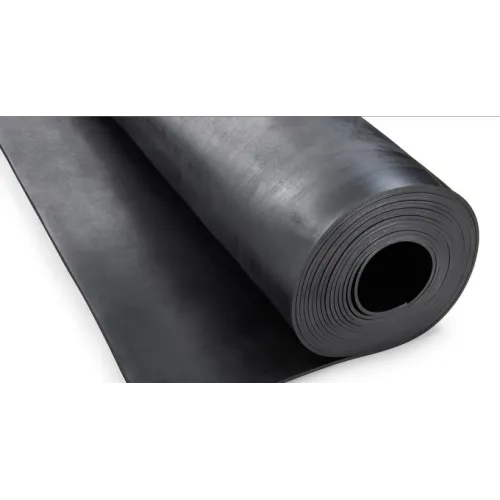

SBR/NBR Fabric-Reinforced Rubber Sheets with Textile Inserts

SBR (styrene-butadiene) and NBR (nitrile) rubber sheets with built-in textile inserts (1 or 2 plies), which give significantly better mechanical properties than sheets made of rubber alone. The textile reinforcement increases resistance to tearing, tension and deformation, making these sheets ideal for producing mechanically stressed industrial gaskets and for applications where rubber alone would not provide sufficient strength.

Technical specifications

  • Material: SBR and NBR rubber with textile inserts
  • Versions: 1 ply (thin thicknesses) and 2 plies (greater thicknesses)
  • Tear resistance superior to rubber without fabric ply
  • Greater resistance to tension and deformation
  • Suitable for water, air, saline solutions and weak acids
  • Operating temperature: -20°C / +70°C
  • Available thicknesses: from 2 to 10 mm
  • Supplier ref.: TESSILGUM
  • Sold by the kg (weight stated per sq m)

Applications and uses

  • Industrial gaskets subject to high mechanical stress
  • Gaskets for flanges and joints under pressure
  • Protection and covering of surfaces subject to wear
  • Belts and mats for heavy industrial applications
  • Reinforced diaphragms and membranes
  • Any application where rubber without fabric ply would tear
Note: The 2-ply version offers significantly greater mechanical strength than the 1-ply version, and is recommended for thicknesses from 4 mm upwards and for applications under pressure.

More details

Code
LGTEXILTEN10
Manufacturer code
TESSILGUM 2 TELE

Recommended accessories and spare parts

ALFA PUNCH ART.484

€5.80
AVAILABLE
Availability: 4 In stock
ALFA carbon steel punch, size MM 9, for cutting gaskets, leather and soft materials. Available in a wide range of diameters.
