TRIFAR ALUMINIUM RIVETS — D.4,8X14 / D.4,8X20MM

TRIFAR Aluminium Rivets Ø4.8 mm - FAR

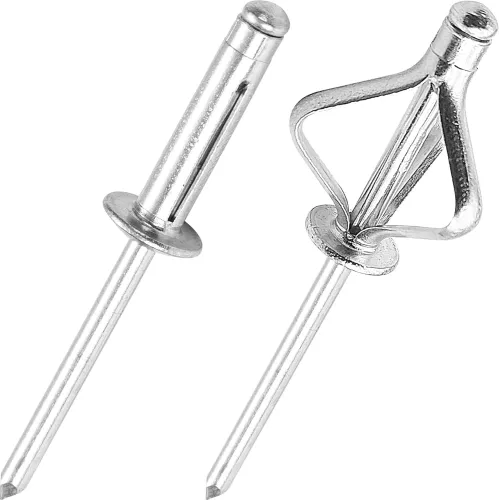

TRIFAR blind rivets (with 3 expansion legs) in aluminium, diameter 4.8 mm, FAR brand, in lengths 14 and 20 mm. The rivet body opens into three segments on the blind side, creating a very large bearing surface, ideal for soft materials or oversized holes.

Technical specifications

• Diameter: 4.8 mm
• Lengths: 14, 20 mm
• Type: TRIFAR (3 expansion legs)
• Brand: FAR
• Triple expansion on the blind side

Applications and uses

• Fastening to soft materials (plastic, fibre)
• Sandwich panels and composite materials
• Oversized or oval holes
• Fastening to fragile and crumbly materials
• Assembly where a wide gripping surface is needed
