AIR FITTING MIGNON M1/4 ART.5051

Code: CL505114
€4.00
VAT excluded: €3.28
Size : M. 1/4"
In stock 7 pieces in stock Ships in 24/48 hours

Description

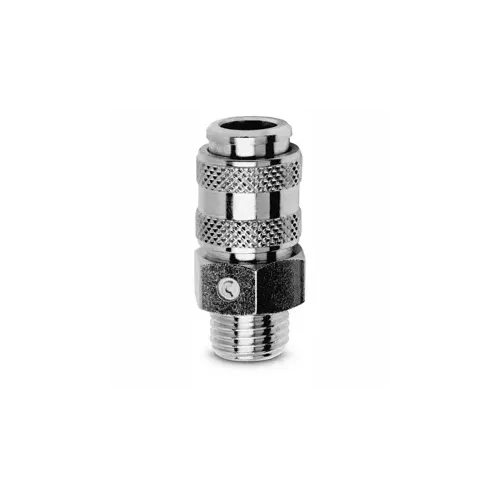

Camozzi G1/4 Male Quick Coupling, Mini Profile - Item No. 5051


Camozzi Mod. 5051 cylindrical male coupling, from the Series 5000 of quick-connect couplings, Mini profile with a nominal diameter of 5 mm, compatible with Rectus Series 21-90 and Legris 21, the profile known as Mignon. It is the quick socket, with a quick-release shut-off valve, to be screwed in with the cylindrical GAS male thread on regulators, manifolds, compressors or line outlets: the Mini profile plugs of hoses, guns and tools connect to it without depressurising the system. Nickel-plated brass body, NBR seals, pressure from -0.99 to 12 bar, temperature from 0 to 80 °C. Variants with a G1/4 thread, weight 37 g, or G1/8, weight 28 g.

Technical Specifications

  • Type: Cylindrical male quick coupling
  • Profile: Mini (Mignon), nominal diameter 5 mm
  • Compatibility: Rectus Series 21-90, Legris 21
  • Thread: G1/4 or G1/8, ISO 228, among the variants
  • Valve: Quick-release, poppet shut-off
  • Materials: Nickel-plated brass, NBR seals
  • Working pressure: from -0.99 to 12 bar (nominal 6 bar)
  • Working temperature: from 0 to 80 °C (from -20 °C with dry air)
  • Item No.: 5051
  • Brand: CAMOZZI

Applications and Uses

  • Air outlets on compressors, regulators and manifolds
  • Quick connection of Mignon guns and tools
  • Workbenches and workshop stations
