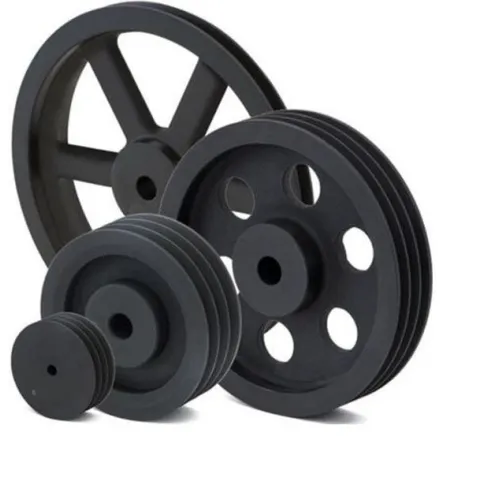

CAST IRON MONOBLOCK PULLEY SECTION A 5 GROOVES

Code: PU1125A
€36.30
VAT excluded: €29.75
Size : 112 5 A
In stock 1 piece in stock Ships in 24/48 hours

Description

One-piece Cast Iron Pulley, A Section, 5 Grooves - Item No. PT112SPA5


The one-piece solid-hub pulley of A section with 5 grooves is made of cast iron and takes A and SPA belts. Reference standards DIN 2211 and ISO 4183; turned on numerically controlled machines with grooves at 34 or 38 degrees depending on the diameter. The material is DIN 1691 GG20 - GG25 cast iron with a protective surface treatment against oxidation; the permitted peripheral speed reaches 35 m/s. The variants cover pitch diameters from 80 to 450 mm. The hub is solid and the bore is not finished: it must be machined to the size of the shaft, and for this reason solid-hub pulleys are not balanced.

Technical Specifications

  • Type: one-piece PT V-pulley with solid hub
  • Material: cast iron DIN 1691 GG20 - GG25
  • Section: A, A and SPA belts
  • Number of grooves: 5
  • Pitch diameter: 80 to 450 mm, to be chosen among the variants
  • Grooves: according to DIN 2211 - ISO 4183
  • Bore: unfinished, to be machined on the solid hub
  • Maximum peripheral speed: 35 m/s
  • Item No.: PT112SPA5
  • Brand: SIT

Applications and Uses

  • Electric motors, compressors and pumps
  • Agricultural machinery and processing plants
  • Fans and extractors
  • Replacement on existing V-belt drives

More details

Brand
SIT
Code
PU1125A
Manufacturer code
PT112SPA5
