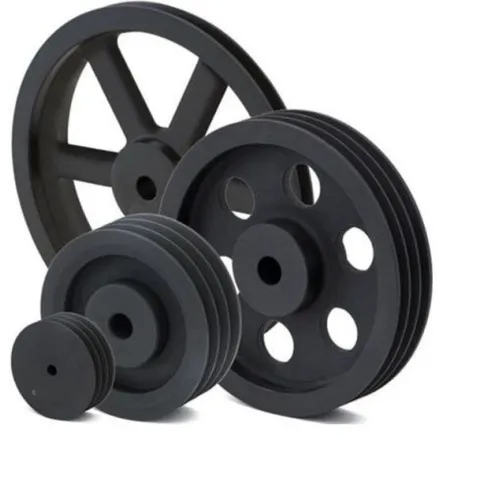

CAST IRON MONOBLOCK PULLEY SECTION A 4 GROOVES

Code: PU1204A
€33.90
VAT excluded: €27.79
Size : 120 4 A
In stock 1 piece in stock Ships in 24/48 hours

Description

One-piece Cast Iron Pulley, A Section, 4 Grooves - Item No. PT120SPA4


Solid-hub cast iron pulley, A section, with 4 grooves, for A and SPA belts. The groove is made according to DIN 2211 - ISO 4183, with numerically controlled machining and an angle of 34 or 38 degrees depending on the pitch diameter. The material is DIN 1691 GG20 - GG25 cast iron with a protective surface treatment against oxidation; the permitted peripheral speed reaches 35 m/s. The pitch diameter, from 70 to 350 mm, is chosen among the variants. Since the bore is not finished, the solid hub must be bored and keyed to the size of the shaft; in the SIT catalogue these pulleys are not balanced.

Technical Specifications

  • Type: one-piece PT V-pulley with solid hub
  • Material: cast iron DIN 1691 GG20 - GG25
  • Section: A, A and SPA belts
  • Number of grooves: 4
  • Pitch diameter: 70 to 350 mm, to be chosen among the variants
  • Grooves: according to DIN 2211 - ISO 4183
  • Bore: unfinished, to be machined on the solid hub
  • Maximum peripheral speed: 35 m/s
  • Item No.: PT120SPA4
  • Brand: SIT

Applications and Uses

  • Fans and extractors
  • Replacement on existing V-belt drives
  • V-belt drives on industrial machines
  • Electric motors, compressors and pumps

More details

Brand
SIT
Code
PU1204A
Manufacturer code
PT120SPA4
