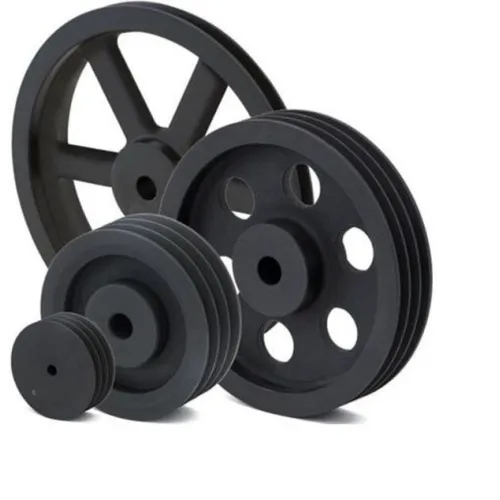

CAST IRON MONOBLOCK PULLEY SECTION A 3 GROOVES

Code: PU1123A
€24.30
VAT excluded: €19.92
Size : 112 3 A
In stock 14 pieces in stock Ships in 24/48 hours

Description

One-piece Cast Iron Pulley, A Section, 3 Grooves - Item No. PT190SPA3


One-piece cast iron V-pulley with solid hub and 3 grooves, A section: it takes A and SPA belts. The grooves follow DIN 2211 and ISO 4183 and SIT pulleys are turned on numerically controlled machines; the groove angle is 34 degrees for the smaller diameters and 38 for the larger ones. The cast iron is DIN 1691 GG20 - GG25 with a surface treatment against rust; maximum peripheral speed 35 m/s. The pitch diameter, from 50 to 320 mm, is chosen among the variants. The bore is to be made in the workshop on the solid hub; the manufacturer does not balance them, precisely because the bore is not finished.

Technical Specifications

  • Type: one-piece PT V-pulley with solid hub
  • Material: cast iron DIN 1691 GG20 - GG25
  • Section: A, A and SPA belts
  • Number of grooves: 3
  • Pitch diameter: 50 to 320 mm, to be chosen among the variants
  • Grooves: according to DIN 2211 - ISO 4183
  • Bore: unfinished, to be machined on the solid hub
  • Maximum peripheral speed: 35 m/s
  • Item No.: PT190SPA3
  • Brand: SIT

Applications and Uses

  • Replacement on existing V-belt drives
  • V-belt drives on industrial machines
  • Electric motors, compressors and pumps
  • Agricultural machinery and processing plants

More details

Brand
SIT
Code
PU1123A
Manufacturer code
PT112SPA3
