TELWIN PLASMA 70 MAX CUTTING CAPACITY MM.30 400V KW 5,5/8,5

Code: SDPLASMA60 EAN: 8004897996493
€1,964.20
VAT excluded: €1,610.00
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

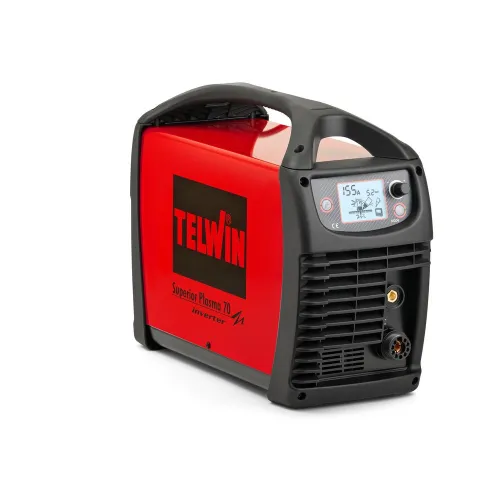

Inverter Plasma Cutter Telwin Superior Plasma 70 Three-Phase - Item No. 816170


Telwin Superior Plasma 70 inverter plasma cutting system, code 816170, using compressed air, supplied with the 6 m PV torch. It cuts and gouges all conductive materials, such as steel, stainless steel, galvanised steel, aluminium, copper and brass, even on grating, with contact pilot arc starting and a 4-stroke mode. Three-phase 230/400 V supply: at 400 V current from 20 to 70 A, 70 A at 30 per cent, maximum power 8.5 kW and maximum cutting thickness 30 mm; at 230 V up to 50 A and 5.5 kW. It needs compressed air at 200 l/min and 4-5 bar. Interface for automatic systems and remote control. IP23, class H, 15.8 kg.

Technical Specifications

  • Type: Inverter plasma cutting system
  • Supply: 230/400 V three-phase
  • Current at 400 V: 20 to 70 A, 70 A at 30 per cent
  • Maximum cutting thickness: 30 mm at 400 V
  • Maximum power: 5.5 kW (230 V), 8.5 kW (400 V)
  • Compressed air: 200 l/min at 4-5 bar
  • Protection: IP23, class H
  • Weight: 15.8 kg
  • Supplied with: PV torch 804041, 6 m
  • Item No.: 816170
  • Brand: TELWIN

Applications and Uses

  • Cutting sheet metal in fabrication and workshops
  • Cutting on grating and gouging
  • Automated cutting systems

More details

Brand
TELWIN
Code
SDPLASMA60
EAN13
8004897996493
Manufacturer code
816170
