FINI ADVANCED COMPRESSOR 220V 200 LITRES

Code: COADVANCED200M EAN: 8017750232126
€833.10
VAT excluded: €682.87
In stock 1 piece in stock Ships in 24/48 hours

Description

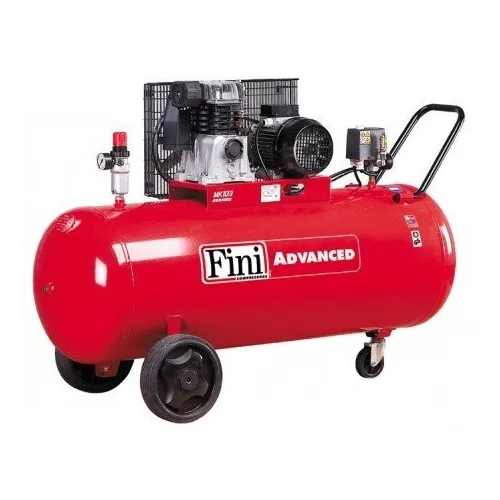

Fini Advanced MK103 Belt-Driven Compressor 200 Litres 3 HP 230 V - Item No. BNLC504FNM515


Fini Advanced MK103-200-3M compressor, code BNLC504FNM515, single-stage belt-driven with a two-cylinder cast iron lubricated pump unit and a 200 litre horizontal tank. The 3 HP, 2.2 kW single-phase motor, supplied at 230 V, turns the unit at 1375 revolutions per minute: air intake 365 l/min and maximum pressure 10 bar. Front-mounted controls, pressure regulator with double outlet, large-bore ball drain valve, metal belt guard, large wheels plus two swivel castors and a handle. Gross weight 98.5 kg.

Technical Specifications

  • Type: Single-stage belt-driven compressor
  • Pump unit: MK103, 2 cast iron cylinders
  • Lubrication: Oil
  • Tank: 200 litres horizontal
  • Power: 3 HP / 2.2 kW
  • Supply: 230 V single-phase
  • Air intake: 365 l/min
  • Maximum pressure: 10 bar
  • Pump unit speed: 1375 rpm
  • Item No.: BNLC504FNM515
  • Brand: FINI

Applications and Uses

  • Workshops, body shops and tyre fitters
  • Supplying several pneumatic tools
  • Small craft production
