OIL SEALS IN NBR, 42X32X4

Code: PR42324
€2.30
VAT excluded: €1.97
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

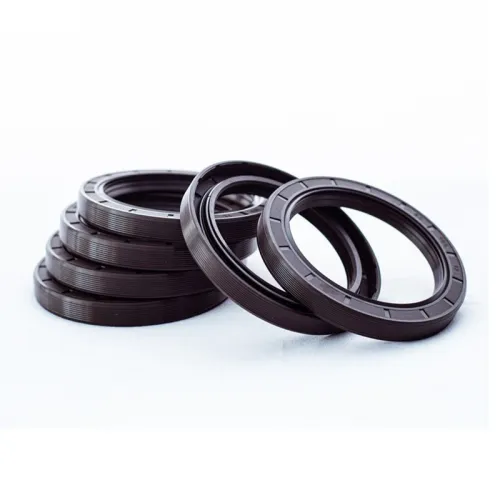

The NBR oil seals (Nitrile Butadiene Rubber) are ring-shaped seals made of nitrile rubber, essential components for sealing rotating shafts in a wide range of industrial and automotive applications.

Classic structure: ✓ Outer coating in NBR elastomer ✓ Metal insert (carbon steel or stainless steel) ✓ Sealing lip energised by a steel spring ✓ Optimised profile for dynamic sealing

Properties of NBR rubber: Nitrile rubber is a high-performance synthetic elastomer that offers:

? Excellent oil resistance

  • Mineral oils and lubricants
  • Fuels and petroleum-based fluids
  • Hydraulic oils
  • Animal and vegetable fats

? Resistance to wear and abrasion

  • Ideal for reciprocating and rotary movements
  • Suitable for shafts, pistons and rods

? Wide temperature range

  • Operating: from -40°C to +100°C (standard)
  • Special formulations: up to +120°C

Operation: Oil seals prevent the leakage of lubricating oil from the axis of rotation and protect against the ingress of external elements such as dust, water and dirt.

Fields of application: ? Automotive industry: engines, transmissions, differentials, axle shafts ? Manufacturing industry: industrial machinery, gearboxes, pumps ? Hydraulic sector: cylinders, valves, hydraulic equipment ? Agriculture: tractors, agricultural machinery, equipment ? Food industry: processing equipment (with food grade NBR)

Size coding: Oil seal sizes are expressed in millimetres according to the standard:

  • First number: Inside diameter (shaft diameter)
  • Second number: Outside diameter (housing diameter)
  • Third number: Thickness/height of the ring

Example: 50X70X10 = Ø inside 50mm x Ø outside 70mm x thickness 10mm

Technical specifications:

PropertyValue
Shore A hardness70-75 (standard)
Temperature-40°C / +100°C
Pressure≤ 0.5 bar (standard)
Peripheral speedup to 15-20 m/s

NBR benefits: ✓ Excellent value for money ✓ Immediate availability in many sizes ✓ Wide chemical compatibility ✓ Proven reliability ✓ Easy to fit

Limitations: ❌ Not resistant to ozone and prolonged exposure to weathering ❌ Not suitable for aromatic and chlorinated hydrocarbons ❌ Not recommended for polar solvents ❌ Not compatible with glycol-based brake fluids

Maintenance: Lubrication is essential for correct operation: the lip must slide on a film of lubricant (1-3 μm) and not in direct contact with the shaft.

Alternatives: For applications at higher temperatures (+150°C / +200°C) or in the presence of aggressive fluids, the use of oil seals in FKM/Viton or PTFE is recommended.

Available size ranges: The various references cover a complete range from small diameters (15mm) up to large sizes (340mm), providing the right solution for every requirement.

More details

Code
PR42324
Manufacturer code
PR42324
