NEEDLE ROLLER BEARINGS HK
HK series needle roller bearings with open-ended drawn cup and cage, without inner ring. Small radial section; 24 sizes by bore, outside diameter and width selectable among the variants.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

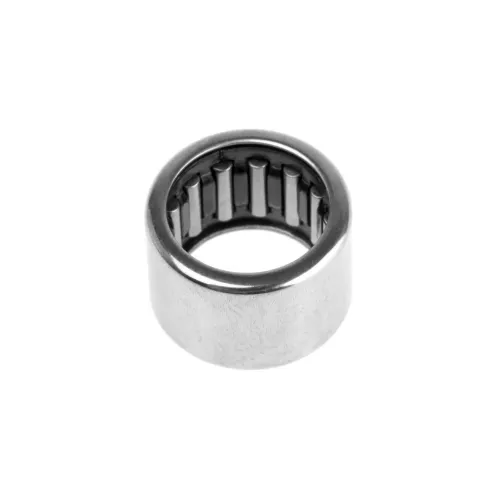

HK Drawn Cup Needle Roller Bearings
The HK series combines in a single part a thin drawn cup and a needle roller and cage assembly. The radial height is very small, so it suits places where space is limited: the bearing is press-fitted into the housing.
It has no inner ring: the shaft must have a hardened and ground raceway. Sizes are chosen among the variants by stating bore, outside diameter and width, to be matched to the shaft and the housing.
Technical Specifications
- Type: Drawn cup needle roller bearing, open-ended
- Series: HK
- Inner ring: absent, raceway on the hardened and ground shaft
- Construction: thin cup with needle rollers and cage
- Dimensions: bore x outside diameter x width, selectable among the variants
- Item No.: CURHK00
- Brand: not specified
Applications and Uses
- Gearboxes, reducers and compact transmission parts
- Tools and mechanisms with little radial space
- Hardened and ground shafts
More details
- Code
- CURHK0509
