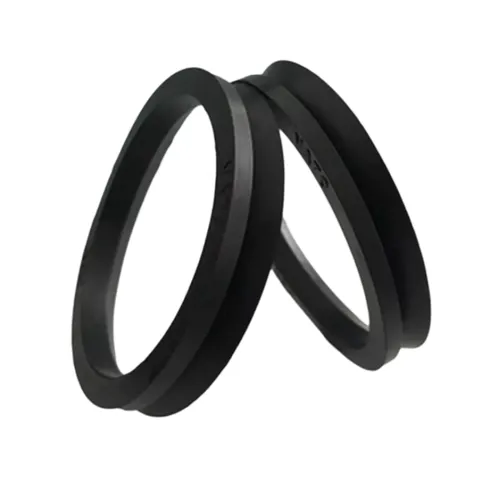

RUBBER SEALS TYPE V

Code: GUGVA100
€2.60
VAT excluded: €2.13
Size : GVA 100
In stock 9 pieces in stock Ships in 24/48 hours

Description

Type V rubber seals are sealing elements with a characteristic “V” section, designed to provide protection and sealing in moving or stationary conditions. This type often also includes V‑Rings, which are axial seals that rotate together with the shaft and create an effective barrier against external contaminants.

Main features:

  • V profile: “V”-shaped cross‑section that provides effective axial sealing directly on the contact surface.

  • Material: elastomeric rubber (for example NBR, FKM, EPDM) offering elasticity, wear resistance and adaptability to mating surfaces.

  • Function: prevents the ingress of dust, dirt, water, oils or other fluids into critical areas, such as bearings or housings.

  • Mounting: usually fitted on the shaft or the mating surface and rotates with it, maintaining a dynamic seal.

  • Typical applications: mechanical transmissions, engines, pumps, bearings, gearboxes, agricultural machinery, industrial plant.

These seals can be used on their own or in combination with other sealing elements (such as oil seals or radial seals) to increase protection in heavy-duty conditions.

⚠️ Images are for illustrative purposes only and may not accurately represent the final product.

More details

Code
GUGVA100
Manufacturer code
GVA100

Recommended accessories and spare parts

POLYURETHANE LIP SEALS, FROM 11X6 TO 48X40

€1.80
AVAILABLE
Availability: 25 In stock

Polyurethane lip seals, available in sizes from 11×6 mm to 48×40 mm, ideal for industrial, hydraulic and pneumatic applications where excellent wear resistance, elasticity and reliable sealing are required.

RUBBER SEALS TYPE DI

€0.49
AVAILABLE
Availability: 186 In stock

NBR rubber lip seals of the DI series, fifty-two sizes selectable among the variants, each with three dimensions in millimetres. For cylinders and parts with reciprocating motion.

SEAL UM

€8.00
Only 2 left!
Availability: 2 In stock
Rubber seal, size UM 270X230X20 for industrial sealing applications.

RUBBER SEALS TYPE C

€0.40
AVAILABLE
Availability: 4 In stock

Rubber seals type C, ideal for sealing applications in mechanical, hydraulic and pneumatic systems where flexibility, wear resistance and a good seal against dust, water and external agents are required.

Reviews (0)
No customer reviews for the moment.
