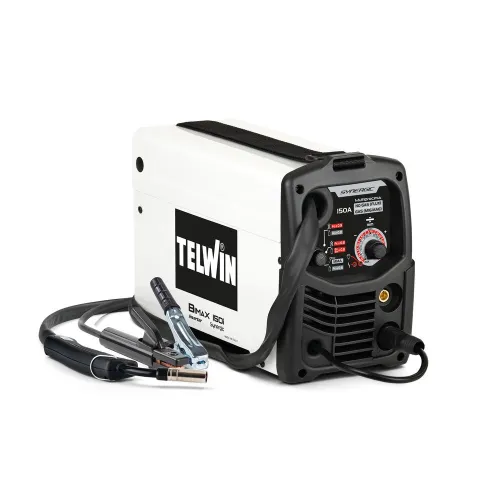

TELWIN BIMAX 150I SYNERGIC FLUX-CORED WIRE WELDER 220V

Code: SD820062 EAN: 8056590373354
€484.00
VAT excluded: €396.72
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

Synergic Inverter Wire Welder Telwin Bimax 150i Synergic - Item No. 816169


Telwin Bimax 150i Synergic multiprocess inverter welder, code 816169, lightweight and with a shoulder strap, for MIG-MAG wire welding, with flux-cored wire and with rutile electrodes up to 2.5 mm. Synergy is set in two ways, by choosing the wire diameter and material or the process and thickness, with programmes for steel, stainless steel, aluminium and flux-cored wire. The polarity change is external. Single-phase 230 V supply with 16 A fuse, current from 20 to 150 A, 115 A at 20 per cent according to EN 60974-1. 100 mm spools, steel wires from 0.6 to 0.8 mm and flux-cored from 0.8 to 0.9 mm. Class H, 7.1 kg. Supplied with a 2 m TW 160 torch and clamps.

Technical Specifications

  • Type: Multiprocess inverter welder
  • Processes: MIG-MAG, flux-cored wire, MMA
  • Supply: 230 V single-phase, 16 A fuse
  • Current: 20 to 150 A
  • Duty cycle: 115 A at 20, 65 A at 60 per cent (EN 60974-1)
  • Wires: Steel 0.6-0.8, stainless steel and aluminium 0.8, flux-cored 0.8-0.9 mm
  • Spools: 100 mm
  • Insulation: Class H
  • Weight: 7.1 kg
  • Supplied with: TW 160 torch 2 m, electrode holder, earth clamp
  • Item No.: 816169
  • Brand: TELWIN

Applications and Uses

  • Repairs and light fabrication
  • Work on site thanks to the low weight
  • Hobby use and maintenance

More details

Brand
TELWIN
Code
SD820062
EAN13
8056590373354
Manufacturer code
816169

Attachments

Recommended accessories and spare parts

CONTACT TIP 0,8 011504

€0.49
AVAILABLE
Availability: 17 In stock

Contact tip 0.8 mm (code 011504) for MIG/MAG torches, a consumable that guides the 0.8 mm diameter welding wire inside the torch, ensuring smooth, jam-free feeding of the wire.

NOZZLE-HOLDER SPRING FOR TORCH TMA15

€1.10
AVAILABLE
Availability: 4 In stock

Trafimet EA0303 nozzle retaining spring for Plus 14-15 and Ergoplus 15 MIG torches: it holds the gas nozzle on the torch body and allows it to be pressed on. Pack of 10 pieces.

CONTACT TIP 0,8 CEA M8X34

€1.30
AVAILABLE
Availability: 4 In stock

Contact tip 0.8 mm CEA M8×34 for MIG/MAG torches, a spare part that allows smooth passage of the welding wire through the torch, ensuring precise feeding and reducing jams and friction.

FLUX-CORED WIRE IRON D.0,9 KG.0,800

€13.50
AVAILABLE
Availability: 20 In stock

Flux-cored wire for iron Ø 0.9 mm – 0.800 kg, consumable for MIG/MAG welding with CO₂ gas or CO₂ mixtures, ideal for welding carbon steel with good weld pool penetration.

FLUX-CORED WIRE IRON D.0,8 KG.0,800

€13.60
AVAILABLE
Availability: 3 In stock

Flux-cored wire for iron Ø 0.8 mm – 0.800 kg, consumable for gasless MIG/MAG welding (FLUX), ideal for welding carbon steel with good penetration and arc stability.

ALUMINIUM WIRE ON SPOOL MM.0,8 kg 0,5

€26.60
AVAILABLE
Availability: 3 In stock

Wire aluminium Ø 0.8 mm – 0.45 kg Telwin, spool for MIG/MAG welding with Argon shielding gas, ideal for work on aluminium with excellent wire feed and clean, regular beads.

ALUMINIUM WIRE ON SPOOL MM1 KG 0,5

€27.00
AVAILABLE
Availability: 3 In stock

Aluminium Wire Spool 1.0 mm 0.45 kg Telwin – aluminium wire Ø 1.0 mm on a spool of approx. 0.45 kg, consumable for MIG/MAG welding with Argon gas, ideal for work on aluminium and light alloys.

TELWIN AUTO-DARKENING WELDING MASK 804233

€37.00
AVAILABLE
Availability: 3 In stock

Telwin Tribe 804233 LCD liquid crystal auto-darkening mask for MMA / MIG‑MAG / TIG welding, with a filter that darkens automatically when the arc is struck and returns to clear when it stops, removing the need to lift and lower the mask during work.

Reviews (0)
No customer reviews for the moment.
