TECHNOMIG 225 DUAL SYNERGIC WIRE WELDER 230V

Code: SDTELMIG2002 EAN: 8056151817501
€1,110.00
VAT excluded: €909.84
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

Multiprocess Inverter Welder Telwin Technomig 225 Dual Synergic - Item No. 816057

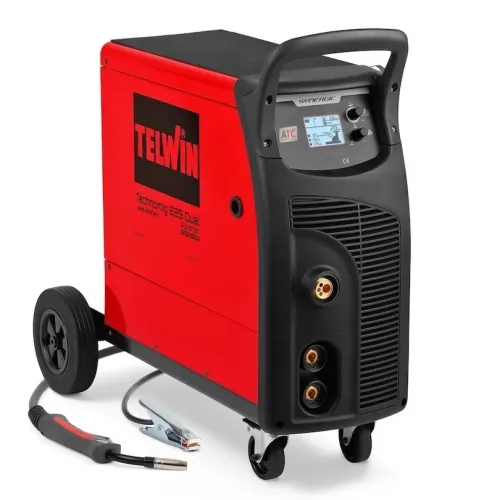

Telwin Technomig 225 Dual Synergic multiprocess inverter welder, code 816057, on wheels, with an LCD display. It welds with MIG-MAG wire, with flux-cored wire and in brazing, with electrodes and in Lift-start TIG. The OneTouch function with 27 synergic curves sets the parameters starting from the thickness, and ATC control helps on thin sheet; there are wire ramp, electronic reactance, burn back, post gas, 2-stroke and 4-stroke and spot welding. Single-phase 230 V supply, current from 20 to 220 A, 180 A at 20 per cent according to EN 60974-1. Reels up to 15 kg of 200 or 300 mm. IP23, 29.6 kg. Supplied with a 3 m MT15 torch, cable and earth clamp.

Technical Specifications

  • Type: Multiprocess inverter welder
  • Processes: MIG-MAG, flux-cored wire, brazing, MMA, Lift TIG
  • Supply: 230 V single-phase
  • Current: 20 to 220 A
  • Duty cycle: 180 A at 20, 100 A at 60 per cent (EN 60974-1)
  • Synergy: OneTouch, 27 curves, ATC
  • Reels: up to 15 kg (200/300 mm)
  • Protection: IP23
  • Weight: 29.6 kg
  • Supplied with: MT15 torch 3 m, cable and earth clamp
  • Item No.: 816057
  • Brand: TELWIN

Applications and Uses

  • Bodywork and fabrication
  • Workshops working with several processes
  • Thin sheet and medium thicknesses

More details

Brand
TELWIN
Code
SDTELMIG2002
EAN13
8056151817501
Manufacturer code
816057

Attachments

Recommended accessories and spare parts

CONTACT TIP 0,8 011504

€0.49
AVAILABLE
Availability: 17 In stock

Contact tip 0.8 mm (code 011504) for MIG/MAG torches, a consumable that guides the 0.8 mm diameter welding wire inside the torch, ensuring smooth, jam-free feeding of the wire.

NOZZLE-HOLDER SPRING FOR TORCH TMA15

€1.10
AVAILABLE
Availability: 4 In stock

Trafimet EA0303 nozzle retaining spring for Plus 14-15 and Ergoplus 15 MIG torches: it holds the gas nozzle on the torch body and allows it to be pressed on. Pack of 10 pieces.

CONTACT TIP 0,8 CEA M8X34

€1.30
AVAILABLE
Availability: 4 In stock

Contact tip 0.8 mm CEA M8×34 for MIG/MAG torches, a spare part that allows smooth passage of the welding wire through the torch, ensuring precise feeding and reducing jams and friction.

ALUMINIUM WIRE ON SPOOL MM.0,8 kg 0,5

€26.60
AVAILABLE
Availability: 3 In stock

Wire aluminium Ø 0.8 mm – 0.45 kg Telwin, spool for MIG/MAG welding with Argon shielding gas, ideal for work on aluminium with excellent wire feed and clean, regular beads.

ALUMINIUM WIRE ON SPOOL MM1 KG 0,5

€27.00
AVAILABLE
Availability: 3 In stock

Aluminium Wire Spool 1.0 mm 0.45 kg Telwin – aluminium wire Ø 1.0 mm on a spool of approx. 0.45 kg, consumable for MIG/MAG welding with Argon gas, ideal for work on aluminium and light alloys.

TELWIN AUTO-DARKENING WELDING MASK 804233

€37.00
AVAILABLE
Availability: 3 In stock

Telwin Tribe 804233 LCD liquid crystal auto-darkening mask for MMA / MIG‑MAG / TIG welding, with a filter that darkens automatically when the arc is struck and returns to clear when it stops, removing the need to lift and lower the mask during work.
