TECHNOMIG 180 DUAL SYNERGIC FLUX-CORED WIRE WELDER 220V

Code: SD816051 EAN: 8056151817372
€572.50
VAT excluded: €469.26
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

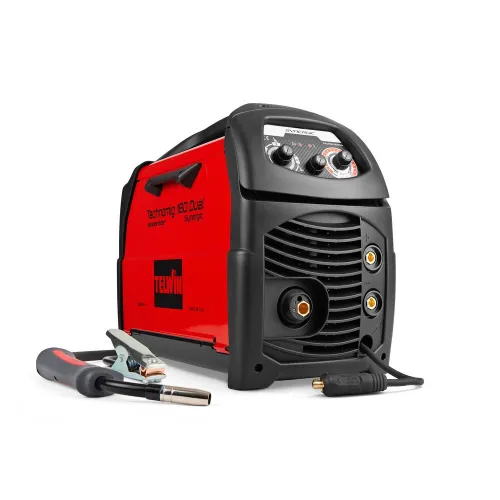

Synergic Inverter Wire Welder Telwin Technomig 180 Dual Synergic


Telwin Technomig 180 Dual Synergic inverter wire welder, for MIG-MAG welding with gas, flux-cored wire without gas and brazing. It is OneTouch synergic: you set the thickness and the machine adjusts the parameters, with fine correction of the arc length; the polarity change lets you switch from gas wire to flux-cored wire. Usable wires: steel from 0.6 to 0.8 mm, stainless steel 0.8 mm, aluminium from 0.8 to 1 mm, flux-cored from 0.8 to 1.2 mm, brazing 0.8 mm. Single-phase 230 V supply, 140 A at 20 per cent and 100 A at 35 per cent according to EN 60974-1. IP23, class H, 46 x 24 x 36 cm. Version to be confirmed: code, reference and EAN indicate three different Telwin versions.

Technical Specifications

  • Type: Synergic inverter wire welder
  • Processes: MIG-MAG, flux-cored wire without gas, brazing
  • Supply: 230 V single-phase
  • Duty cycle: 140 A at 20, 100 A at 35 per cent (EN 60974-1)
  • Wires: Steel 0.6-0.8, stainless steel 0.8, aluminium 0.8-1, flux-cored 0.8-1.2 mm
  • Protection: IP23, class H
  • Dimensions: 46 x 24 x 36 cm
  • Version: to be confirmed (code 816054, ref. 816051, EAN 816075)
  • Brand: TELWIN

Applications and Uses

  • Bodywork and light fabrication
  • Outdoor welding with flux-cored wire
  • Workshops and advanced hobby use

More details

Brand
TELWIN
Code
SD816051
EAN13
8056151817372
Manufacturer code
816054

Attachments

Recommended accessories and spare parts

CONTACT TIP 0,8 011504

€0.49
AVAILABLE
Availability: 17 In stock

Contact tip 0.8 mm (code 011504) for MIG/MAG torches, a consumable that guides the 0.8 mm diameter welding wire inside the torch, ensuring smooth, jam-free feeding of the wire.

NOZZLE-HOLDER SPRING FOR TORCH TMA15

€1.10
AVAILABLE
Availability: 4 In stock

Trafimet EA0303 nozzle retaining spring for Plus 14-15 and Ergoplus 15 MIG torches: it holds the gas nozzle on the torch body and allows it to be pressed on. Pack of 10 pieces.

CONTACT TIP 0,8 CEA M8X34

€1.30
AVAILABLE
Availability: 4 In stock

Contact tip 0.8 mm CEA M8×34 for MIG/MAG torches, a spare part that allows smooth passage of the welding wire through the torch, ensuring precise feeding and reducing jams and friction.

FLUX-CORED WIRE IRON D.0,9 KG.0,800

€13.50
AVAILABLE
Availability: 20 In stock

Flux-cored wire for iron Ø 0.9 mm – 0.800 kg, consumable for MIG/MAG welding with CO₂ gas or CO₂ mixtures, ideal for welding carbon steel with good weld pool penetration.

FLUX-CORED WIRE IRON D.0,8 KG.0,800

€13.60
AVAILABLE
Availability: 3 In stock

Flux-cored wire for iron Ø 0.8 mm – 0.800 kg, consumable for gasless MIG/MAG welding (FLUX), ideal for welding carbon steel with good penetration and arc stability.

ALUMINIUM WIRE ON SPOOL MM.0,8 kg 0,5

€26.60
AVAILABLE
Availability: 3 In stock

Wire aluminium Ø 0.8 mm – 0.45 kg Telwin, spool for MIG/MAG welding with Argon shielding gas, ideal for work on aluminium with excellent wire feed and clean, regular beads.

ALUMINIUM WIRE ON SPOOL MM1 KG 0,5

€27.00
AVAILABLE
Availability: 3 In stock

Aluminium Wire Spool 1.0 mm 0.45 kg Telwin – aluminium wire Ø 1.0 mm on a spool of approx. 0.45 kg, consumable for MIG/MAG welding with Argon gas, ideal for work on aluminium and light alloys.

TELWIN AUTO-DARKENING WELDING MASK 804233

€37.00
AVAILABLE
Availability: 3 In stock

Telwin Tribe 804233 LCD liquid crystal auto-darkening mask for MMA / MIG‑MAG / TIG welding, with a filter that darkens automatically when the arc is struck and returns to clear when it stops, removing the need to lift and lower the mask during work.
