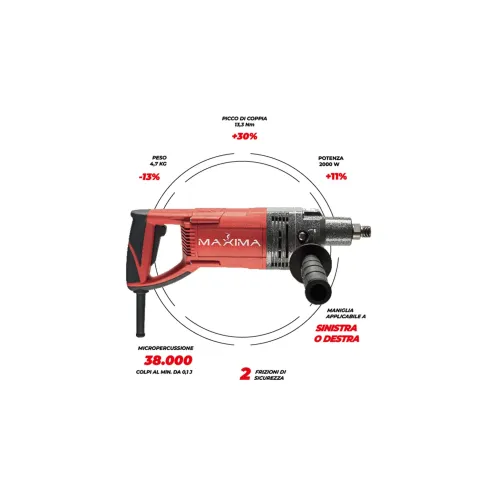

MAXIMA CAROMAX "M" 2000W MANUAL CORE DRILL + ACCESSORIES

Maxima Caromax 160 water core drill system, combining the 2150W Caromax 210 A core drill and the aluminium Column 200. Maximum capacity 200 mm, column tiltable to 45°, anchoring by plug or vacuum. Made in EU, CE certified.

Maxima Caromax 1800 dry core drill, 1800W power, 33.000 blows/min micro-percussion, maximum diameter 205 mm, dual clutch, M18 connection. Weight 5.2 kg.

The CAROMAX 800 is a high-speed manual water-cooled core drill designed for drilling ceramic materials, porcelain stoneware, granite, marble and glass mosaic, with drilling diameters that can be varied by means of an electronic speed selector and an integrated cooling system. The kit included comprises three core bits with diameters of 6 mm, 8 mm and 10 mm, quick adapters and centring and water collection accessories.

Technical data:

Power input: 800 W – 230 V

Water tank capacity: 1 L

Maximum drilling diameter: Ø 60–68 mm

No-load speed 1: 3 600 rpm (holes Ø 20–68 mm)

No-load speed 2: 6 400 rpm (holes Ø 6–20 mm)

Maximum drilling depth: 60 mm

Quick coupling for core bits: 1/2″ BSP

Integrated PRCD safety switch

Weight: 3.4 kg

Supplied with:

1 × core bit Ø 6 mm

1 × core bit Ø 8 mm

1 × core bit Ø 10 mm

3 × quick adapters

Centring system

Water collection kit

Carry case

Maxima Aspiramax M professional vacuum cleaner, 35 litre tank, class M, automatically operated filter shaker, designed to work in synergy with Caromax M. For dust and liquids.
