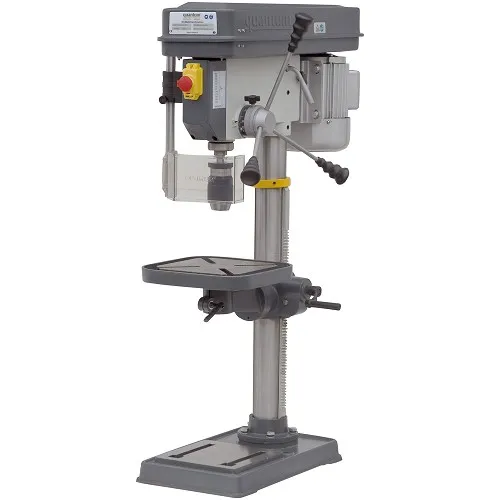

PILLAR DRILL DRILLING 20mm.220V CHUCK/BASE DIST. H645

Code: 058OP8201
€564.10
VAT excluded: €462.38
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

Optimum OPTIdrill B 20 230 V Bench Pillar Drill - Item No. 058OP8201


The B 20 of the Optimum OPTIdrill series, here in the 230 V version item 058OP8201, is a bench pillar drill with V-belt transmission. The GATES toothed belts, the aluminium pulleys and the ground multi-tooth driver make operation quiet and optimise the transmission of power from the 0.55 kW motor. The precision work table tilts 45° on each side and rotates through 360°, the solid grooved base is reinforced by ribs at the rear and the belt cover has a safety switch. It drills up to 20 mm in S235JR steel and is supplied with a 1-16 mm keyless chuck, MT 2 taper and T-nuts to fix the vice.

Technical Specifications

  • Motor power: 0.55 kW, 230 V
  • Drilling in S235JR steel: 20 mm (18 mm continuous)
  • Spindle taper: MT 2, quill stroke 80 mm
  • Speeds: 12, from 210 to 2,220 rpm
  • Table: 275x275 mm, tilting ±45° and rotating 360°
  • Maximum spindle-to-table distance: 465 mm
  • Maximum spindle-to-base distance: 645 mm
  • Column: Ø 70 mm
  • Dimensions and weight: 600x350x990 mm, 51 kg
  • Supplied with: 1-16 mm chuck, MT 2 taper, T-nuts
  • Item No.: 058OP8201
  • Brand: LTF

Applications and Uses

  • Drilling steel in a machine workshop
  • Bench work with parts clamped in a vice
  • Angled holes thanks to the tilting table

More details

Brand
LTF
Code
058OP8201
Manufacturer code
058OP8201
