PILLAR DRILL DRILLING 20mm.220V CHUCK/BASE DIST.H1210

Code: UEK9334
€584.40
VAT excluded: €479.02
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

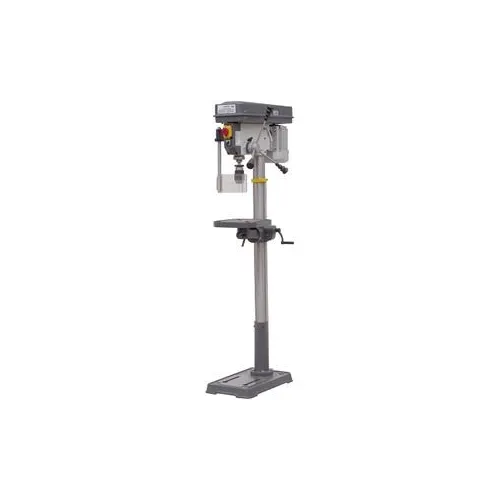

Optimum OPTIdrill B 25 Drill Press 230 V - Item No. 058OP8251


The Optimum B 25 OPTIdrill, item no. 058OP8251 in the 230 V version, is the drill press for those who also need to drill tall workpieces: the maximum distance between chuck and base reaches 1,210 mm. The rotational concentricity, measured in the bit holder seat, stays within 0.03 mm and the shaft is mounted on precision ball bearings. As standard there is the Optimum quick-release chuck of 1-16 mm with an MT 3 taper. The long quill feed lever has an ergonomic shape and a Softgrip non-slip handle, with a drilling depth stop. The IP 54 safety switch incorporates the undervoltage release and is accompanied by a separate emergency switch.

Technical Specifications

  • Motor power: 0.55 kW, 230 V
  • Drilling in S235JR steel: 20 mm (18 mm continuous)
  • Spindle taper: MT 3, quill travel 80 mm
  • Speeds: 12, from 210 to 2,220 rpm
  • Table: 275x275 mm, tilting ±45° and rotating 360°
  • Max. chuck-to-table distance: 760 mm
  • Max. chuck-to-base distance: 1,210 mm
  • Dimensions and weight: 690x390x1,570 mm, 57 kg
  • Supplied with: 1-16 mm chuck, MT 3 taper, T-nuts
  • Item No.: 058OP8251
  • Brand: LTF

Applications and Uses

  • Drilling tall pieces resting on the base
  • Repeated jobs at constant depth
  • Machine shops and maintenance departments

More details

Brand
LTF
Code
UEK9334
Manufacturer code
058OP8251

Attachments

Recommended accessories and spare parts

LTF PRECISION SELF-TIGHTENING CHUCK 0-16MM B16

€65.10
Last one left!
Availability: 1 In stock

Optimum DKC16 keyless chuck, item no. 3050633: B16 taper mount and clamping range from 0 to 16 mm, with quick hand clamping, for working with larger-diameter bits on the pillar drill.
