LEVER ARM — 4 SIZES, FROM BI/50 TO BI/85

Code: MT6135038
€6.00
VAT excluded: €4.92
Size : M14X78
In stock 4 pieces in stock Ships in 24/48 hours

Description

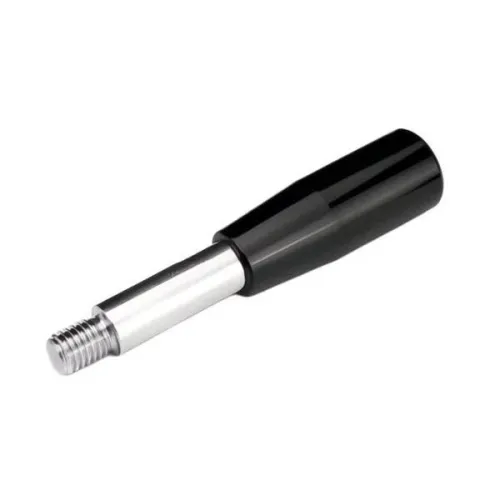

BI Lever Arm with Cylindrical Knob - Item No. 6135515


GAMM lever arm of the BI series, made up of a galvanised steel threaded shaft and a black thermoset cylindrical knob. It is used to adjust, tighten and operate machine parts, jigs and equipment. The threads range from M8 to M14 and the shafts from 75 to 190 mm in length. In the BI/50 M8x125 version the knob measures 21x50 mm, the M8 shaft is 95 mm long and the weight is 56 g. The size is chosen from the variants. On request, for suitable quantities, the manufacturer can supply steel, brass or stainless steel inserts and different colours. For clarification on the right size, write to us before ordering.

Technical Specifications

  • Type: Lever arm with knob
  • Materials: Galvanised steel shaft, thermoset knob
  • Threads: from M8 to M14
  • Example BI/50 M8x125: knob 21x50 mm, 56 g
  • Item No.: 6135515
  • Brand: GAMM

Applications and Uses

  • Workshop machinery
  • Machining jigs
  • Metalwork construction

More details

Brand
GAMM
Code
MT6135038
Manufacturer code
6135038

Attachments

Recommended accessories and spare parts

KNURLED HANDWHEEL BMP VB/40/P M8 BLIND HOLE

€0.90
AVAILABLE
Availability: 14 In stock

GAMM VB/40/P M8 knurled handwheel, diameter 40 mm, height 20 mm, in black engineering polymer with brass bush and blind hole, 18 g, item no. 6304050. If you have a doubt, ask us to confirm.

FIXING WING NUT GB/30 — M6 / M8

€0.80
AVAILABLE
Availability: 10 In stock

GAMM GB/30 clamping knob, 30 mm, in reinforced technopolymer with brass bush with threaded blind hole, M6 and M8, item no. 7318020. Ask us to confirm if in doubt.

Reviews (0)
No customer reviews for the moment.
