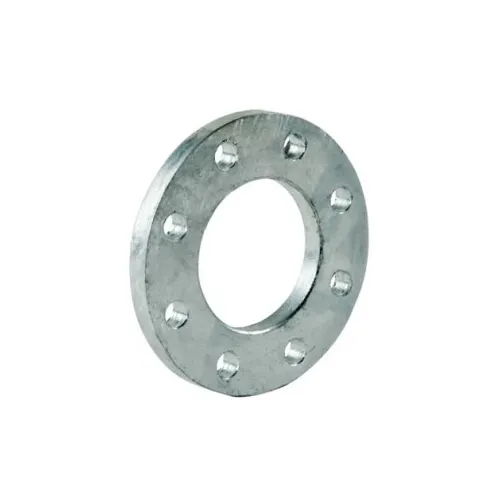

FLAT FLANGE UNI 2278 DN 15-300 PN10/16

Code: FLDN100
€5.80
VAT excluded: €4.75
Size : DN 100 4"
In stock 3 pieces in stock Ships in 24/48 hours

Description

Slip-On Welding Flat Flanges UNI 2278 / UNI 2277 - PN10/16

Slip-on welding flat flanges in carbon steel compliant with UNI 2278 (PN10/16) and UNI 2277 (PN10). The flat flange is the most common and versatile type: it slides over the pipe and is welded with two weld beads (inside and outside). Full range of nominal diameters from DN 15 to DN 300 to cover every system requirement.

Technical specifications

  • Type: slip-on welding flat flange
  • Material: carbon steel
  • Standard: UNI 2278 PN10/16 (DN 15 - DN 200) and UNI 2277 PN10 (DN 250 - DN 300)
  • Nominal diameters: DN 15 (1/2"), DN 20 (3/4"), DN 25 (1"), DN 32 (1.1/4"), DN 40 (1.1/2"), DN 50 (2"), DN 65 (2.1/2"), DN 80 (3"), DN 100 (4"), DN 125 (5"), DN 150 (6"), DN 175 (7"), DN 200 (8"), DN 250 (10"), DN 300 (12")
  • Drilling and dimensions according to UNI standard

Applications and uses

  • Hydraulic and heating systems
  • Industrial pipework for water, air and process fluids
  • Boiler rooms and heating systems
  • Waterworks and water treatment plants
  • Fire protection systems

More details

Code
FLDN100
Manufacturer code
2278-DN100

Recommended accessories and spare parts

FLANGE GASKET DN 10-300 SP.2-3mm

€0.07
AVAILABLE
Availability: 63 In stock
Flange gaskets in jointing material, thicknesses 2 and 3 mm, full range from DN 10 to DN 300. For watertight sealing in flanged joints.
