Description

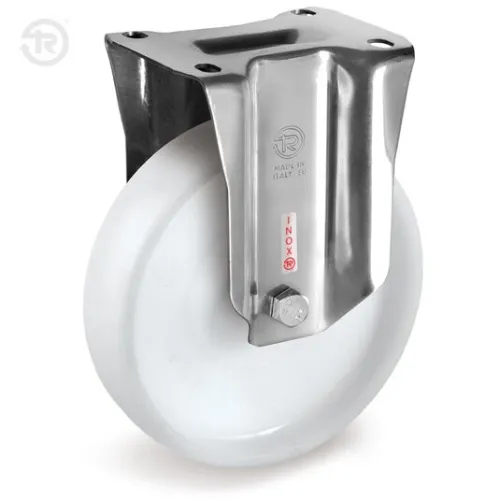

Nylon Wheel Tellure Rota Series 68 with Fixed Stainless Steel Bracket - Item No. 685603
Tellure Rota series 68: monolithic wheels in 70 Shore D polyamide 6, with the hub on a bush, rollers or shielded balls. Version with fixed stainless steel bracket (NLX, AISI 304 stainless steel, stainless steel balls, maximum load capacity 300 daN). The diameters are 100, 125 and 175 mm. Choose the size you want from the variants. They are suitable for mainly static use and medium loads, on smooth floors only, even in environments with aggressive chemical agents; the manufacturer does not recommend them with strong organic acids and concentrated mineral acids. The manufacturer's wheels are built to ISO 22880 and UNI EN 12529 and comply with the RoHS and REACH directives.
Technical Specifications
- Type: Wheel with fixed stainless steel bracket
- Covering: Monolithic polyamide 6, 70 Shore D
- Core: Monolithic
- Diameters: 100, 125 and 175 mm
- Bracket: Fixed NLX stainless steel, maximum load capacity 300 daN
- Operating temperature: from -30 to +80 °C
- Item No.: 685603
- Brand: TELLURE ROTA
Applications and Uses
- Loads standing still for long periods
- Installations with washdown
- Building sites
More details
- Brand
- TELLURE ROTA
- Code
- RU685405
- EAN13
- 8007554037898
- Manufacturer code
- 685405
