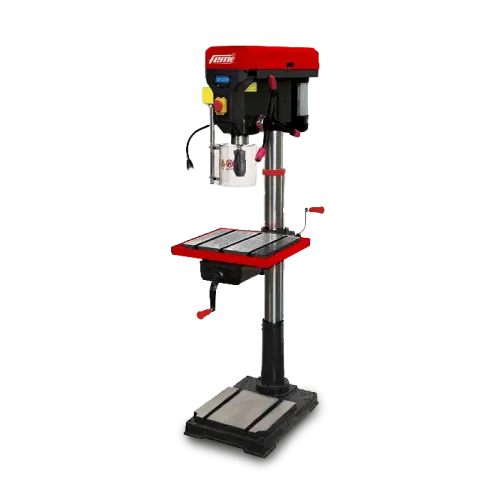

FEMI 634RV 220 PILLAR DRILL PRO RANGE

Voltage Single-phase

Motor power (watt) 460

Weight (Kg) 27

Packaging (mm) 680x420x245

RPM 1400

Type Bench

Chuck type Key

Chuck (mm) 3-16

Speeds 12

230-2470

Height (mm) 845

Column diameter (mm) 60

Spindle stroke (mm) 60

Spindle taper B16

Spindle-to-column distance (mm) 126

Drilling capacity (mm) 16

Worktable (mm) 202x197

Technical specifications

The drill for those seeking performance and compactness

Keyed chuck with capacity from 3 to 16mm

Tilting worktable

Worktable raised and lowered by rack and pinion

Upper cover with safety microswitch

A new floor-standing pillar drill, with self-tightening chuck, height 1635 mm, variable speed and digital display.

The digital display with rotation speed indicator, combined with the speed adjustment function, allows appropriate use of the drill according to the material to be drilled.

Speed adjustment function via external control : great versatility, precision and ease of use. The standard equipment is completed by the light for the work area and the graduated drilling depth adjustment.

Column diameter 46 mm

Electronically variable speed

Drilling speed: position 1 = 220-880 min-1; position 2 = 650-2550 min-1

Drilling capacity 80 mm

Chuck capacity: from 1,5 to 13 mm

Spindle-to-base distance: 280 mm

Height 660 mm

Worktable: 340x300x40 mm

Class 2 laser, wavelength 650 mm, power <1mW
