SDS-PLUS TO 1/2" FEMALE ADAPTOR FOR MOUNTING THREADED CHUCKS
Code: MNRAC12SDFEAN: 8017157601082
€17.50
VAT excluded:
€14.34

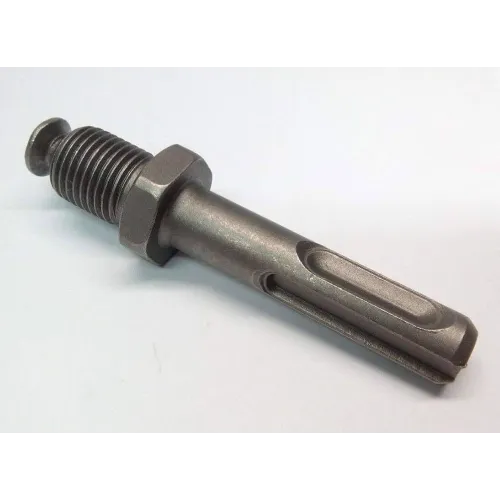

Adapter with SDS-plus shank and 1/2"x20 UNF thread for fitting rack-type or keyless chucks with 1/2"x20 female mount on rotary hammers, drills and hammer drills with SDS-plus mount.
SDS-plus Adapter for Chucks with 1/2"x20 Female Mount
This adapter turns the SDS-plus mount of a rotary hammer, drill or hammer drill into a 1/2"x20 UNF thread, onto which a chuck with a female mount of the same size can be screwed, rack-type or keyless. In this way an SDS-plus machine can also work with a traditional chuck and with the bits that require this type of grip. Pay attention to the code: in the catalogue the product appears under the Porta brand with a Porta EAN code, while the manufacturer code shown, 1617000132, corresponds to a Bosch adapter with the same mount characteristics. Before ordering it is advisable to ask for confirmation of the brand and code actually supplied.
Technical Specifications
Type: Chuck adapter
Machine mount: SDS-plus
Thread for the chuck: 1/2"x20 UNF
Compatible chucks: rack-type or keyless with 1/2"x20 female mount
Machines: SDS-plus rotary hammers, drills and hammer drills
Item No.: 1617000132 (to be confirmed: Bosch code, Porta brand in the catalogue)
Brand: PORTA (to be confirmed)
Applications and Uses
Fitting a threaded chuck on an SDS-plus machine
Reusing 1/2"x20 chucks already available in the workshop
Using rack-type or keyless chucks on the same machine
PORTA Morse taper arbor for connecting the drill chuck to the machine: CM1 to CM4 shank and B10, B12, B16, B18 or Jacobs J1 and J2 mount, in 16 combinations to choose among the variants according to machine and chuck.
Porta toothed T-handle key for rack-type chucks, in models KH810, KS1, KS2 and KS3 to choose according to the chuck. The pin enters the hole in the chuck and the pinion turns the ring gear to tighten or loosen the bit.
Porta double male coupling, item no. RAC3812M, with one 1/2" threaded side and one 3/8": it joins chucks and machines with threads of different size without changing the chuck.
PORTA taper drift extractor for tools with a Morse taper shank and tang, in two versions: CM1-CM2 and CM2-CM3. It frees bits, sleeves and chucks from the machine socket.
