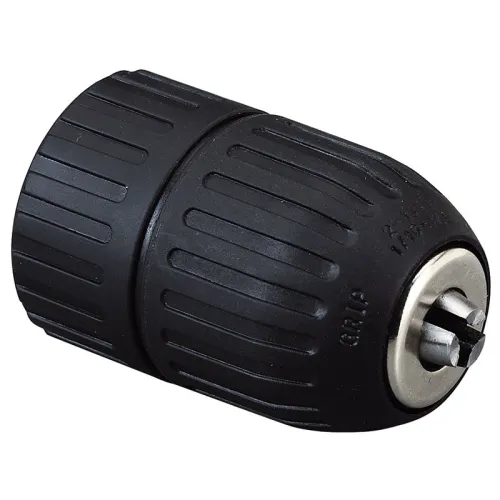

PORTA SELF-TIGHTENING CHUCK — KEYLESS, B10/B12/B16/JACOBS/THREADED MOUNTS, 23 VARIANTS
Code: MN32B10
€40.50
VAT excluded:
€33.20
Porta keyless drill chucks, hand tightening without a key: 23 variants with DIN B10, B12, B16 or B18 taper mount, Jacobs taper or 1/2"x20 and 3/8"x24 female thread, capacity from 0-6 to 3-16 mm. For hand-held and fixed drills.
Porta Keyless Drill Chucks - Range of Taper, Jacobs and Threaded Mounts
Range of Porta keyless chucks for hand-held and fixed drills: the bit is locked by tightening the sleeve by hand, with no key needed. The 23 variants cover the most common mounts, namely DIN type B taper, Jacobs taper and female thread, with clamping capacities from 0-6 mm up to 3-16 mm depending on the model. The range includes item 375F12 of the industrial series, with clamping from 1.5 to 13 mm and 1/2"x20 threaded mount, intended for professional drills. To choose the right variant, check the mount of the chuck currently on the machine, taper or threaded, and the maximum diameter of the bits to be fitted. Precision data for the individual models should be requested before ordering.
Technical Specifications
Type: Keyless chuck, hand tightening without a key
Taper mounts: DIN B10, B12, B16, B18 and Jacobs J1, J2
Threaded mounts: female 1/2"x20 and 3/8"x24
Clamping capacity: from 0-6 mm to 3-16 mm depending on the model
Available sizes: 23 combinations of mount and capacity (selectable among the variants)
Variant 375F12: 1.5-13 mm, 1/2"x20 mount, industrial series
Brand: PORTA
Applications and Uses
Replacing the chuck on hand-held drills with a threaded mount
Fitting on fixed drills and machines with a DIN or Jacobs taper
Quick keyless bit changes in the workshop and on site
PORTA Morse taper arbor for connecting the drill chuck to the machine: CM1 to CM4 shank and B10, B12, B16, B18 or Jacobs J1 and J2 mount, in 16 combinations to choose among the variants according to machine and chuck.
Porta toothed T-handle key for rack-type chucks, in models KH810, KS1, KS2 and KS3 to choose according to the chuck. The pin enters the hole in the chuck and the pinion turns the ring gear to tighten or loosen the bit.
Porta double male coupling, item no. RAC3812M, with one 1/2" threaded side and one 3/8": it joins chucks and machines with threads of different size without changing the chuck.
PORTA taper drift extractor for tools with a Morse taper shank and tang, in two versions: CM1-CM2 and CM2-CM3. It frees bits, sleeves and chucks from the machine socket.
