PORTA

PORTA LIGHT-DUTY GEARED CHUCK — 0-8/1-10MM, 1/2"/3/8" MOUNTS, 8 VARIANTS

Code: MNAH08F12
€11.90
VAT excluded: €9.75
Size : 0-8 1/2"FEMALE
In stock 3 pieces in stock Ships in 24/48 hours

Description

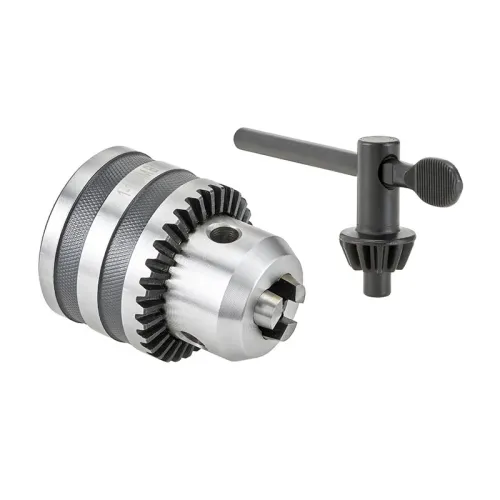

Porta Light Series Rack-Type Keyed Chuck, Ranges 0-8, 1-10 and 1.5-13 mm


The light series of Porta rack-type keyed chucks is designed for hand-held electric and cordless drills, where a chuck of moderate weight makes the machine easier to handle. Clamping is the classic toothed-key kind, which tightens the jaws firmly and lets you release the bit even after demanding work. The eight versions cover three clamping ranges: 0-8 mm for small bits, with 3/8" male or 1/2" female mount; 1-10 mm with 1/2" female, 3/8" female or 3/8" male; 1.5-13 mm with the same three threads. Before ordering, check the thread on the machine spindle: a female mount screws onto a male threaded spindle and vice versa. For the key matched to each version you can ask customer service for confirmation.

Technical Specifications

  • Type: Light series rack-type keyed chuck, with toothed key
  • Clamping ranges: 0-8, 1-10 and 1.5-13 mm
  • Mounts 0-8 mm: male 3/8", female 1/2"
  • Mounts 1-10 mm: female 1/2", female 3/8", male 3/8"
  • Mounts 1.5-13 mm: female 1/2", female 3/8", male 3/8"
  • Versions: 8, selectable among the variants
  • Brand: PORTA

Applications and Uses

  • Replacing the chuck on hand-held drills
  • Electric and cordless drills with a threaded spindle
  • Light drilling with small-diameter bits
  • Hobby use and minor maintenance

More details

Brand
PORTA
Code
MNAH08F12
Manufacturer code
AH08F12R

Attachments

Recommended accessories and spare parts

MALE+MALE FITTING 1/2"X3/8" FOR CHUCKS

€3.80
Only 2 left!
Availability: 2 In stock

Porta double male coupling, item no. RAC3812M, with one 1/2" threaded side and one 3/8": it joins chucks and machines with threads of different size without changing the chuck.
