PORTA CORDLESS SELF-TIGHTENING CHUCK — 1-10MM, 1/2"/3/8" MOUNTS, 5 VARIANTS
Code: MNLD10F12R
€13.90
VAT excluded:
€11.39

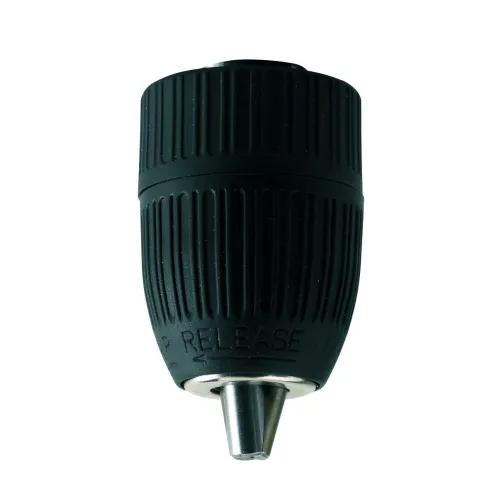

Porta keyless chuck for cordless drills and drivers, tightened by hand without a key. Five versions: 1-10 mm with 1/2" or 3/8" female or 3/8" male mount, and hammer-action versions 1-10 and 2-13 mm with 1/2" female.
Porta Keyless Chuck for Cordless Drills, Ranges 1-10 and 2-13 mm
The Porta keyless chuck from the cordless line is dedicated to cordless drills and drivers: it opens and closes by turning the sleeve by hand, with no key needed, so the bit can be changed on site without tools. Five versions are available. Three have a 1-10 mm clamping range and a 1/2" female, 3/8" female or 3/8" male mount; two are intended for use with hammer action, marked PERC, with a 1/2" female mount and a range of 1-10 mm or 2-13 mm. For the version with code LD10F38R, 3/8" female, a retailer's listing gives a range of 1.5-10 mm instead of 1-10 mm: if you need the exact minimum diameter, ask us to confirm before ordering. Before choosing, check the thread on the spindle of your machine.
Technical Specifications
Type: Keyless chuck, cordless line
Clamping ranges: 1-10 mm and 2-13 mm
Mounts 1-10 mm: female 1/2", female 3/8", male 3/8"
Hammer-action versions (PERC): 1-10 mm and 2-13 mm, female 1/2"
Versions: 5, selectable among the variants
Range of version LD10F38R: to be confirmed (1-10 mm in the name, 1.5-10 mm for the code)
Brand: PORTA
Applications and Uses
Cordless drills and drivers
Replacing a worn chuck on machines with a threaded spindle
PORTA Morse taper arbor for connecting the drill chuck to the machine: CM1 to CM4 shank and B10, B12, B16, B18 or Jacobs J1 and J2 mount, in 16 combinations to choose among the variants according to machine and chuck.
Porta toothed T-handle key for rack-type chucks, in models KH810, KS1, KS2 and KS3 to choose according to the chuck. The pin enters the hole in the chuck and the pinion turns the ring gear to tighten or loosen the bit.
Porta double male coupling, item no. RAC3812M, with one 1/2" threaded side and one 3/8": it joins chucks and machines with threads of different size without changing the chuck.
PORTA taper drift extractor for tools with a Morse taper shank and tang, in two versions: CM1-CM2 and CM2-CM3. It frees bits, sleeves and chucks from the machine socket.
