Description

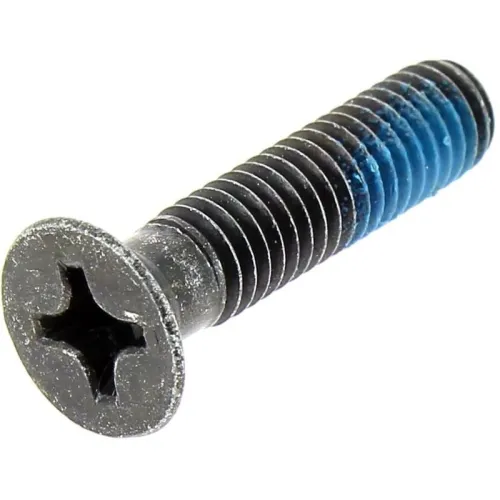

Bosch Chuck Fixing Screw M6 Left-Hand Thread - Item No. 2603421226
Bosch chuck fixing screw, item 2603421226: an original countersunk-head spare part, M6 thread, with a left-hand thread. The catalogue name indicates a 6 x 26 mm screw, while for code 2603421226 the spare parts lists show M6 x 27 mm: the length is to be confirmed, please ask us before ordering. It is the screw that, fitted at the bottom of the chuck, holds it on the drill spindle: the reverse thread means that the working rotation tends to tighten it rather than loosen it, so the chuck stays firm during use. It is ordered when replacing a worn chuck or when the original screw has been damaged during removal. In the Bosch spare parts lists it appears, among others, on the GSB 20-2 RE impact drill. Before ordering, it is worth checking the code on the spare parts list of your own tool.
Technical Specifications
- Type: Countersunk-head screw for fixing the chuck
- Thread: M6
- Length: to be confirmed (26 mm in the name, 27 mm for the code)
- Thread direction: Left-hand (reverse thread)
- Reference tool: Bosch GSB 20-2 RE impact drill
- Spare part: Original Bosch
- Item No.: 2603421226
- Brand: BOSCH
Applications and Uses
- Replacing the chuck on Bosch drills
- Replacing a stripped screw or one lost during removal
- Workshop maintenance and tool servicing
More details
- Brand
- BOSCH
- Code
- UEB2603421226
- Manufacturer code
- 2603421226
